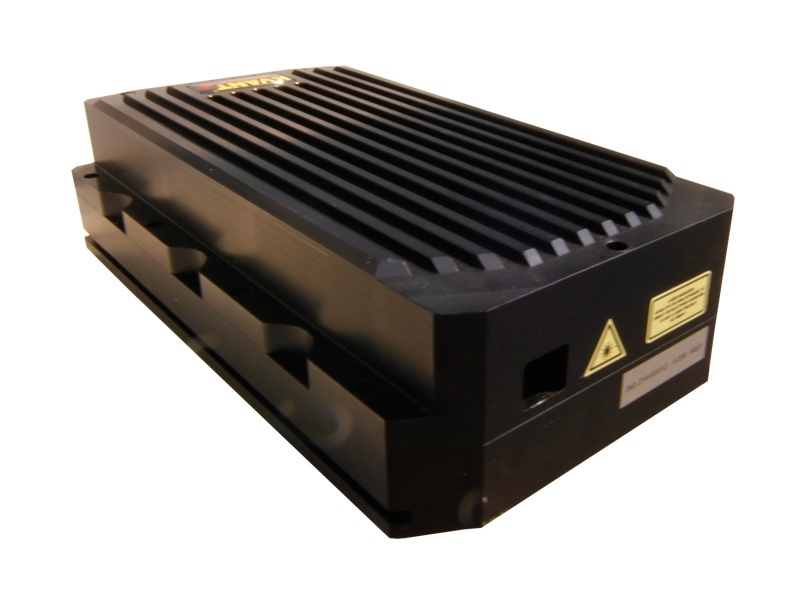

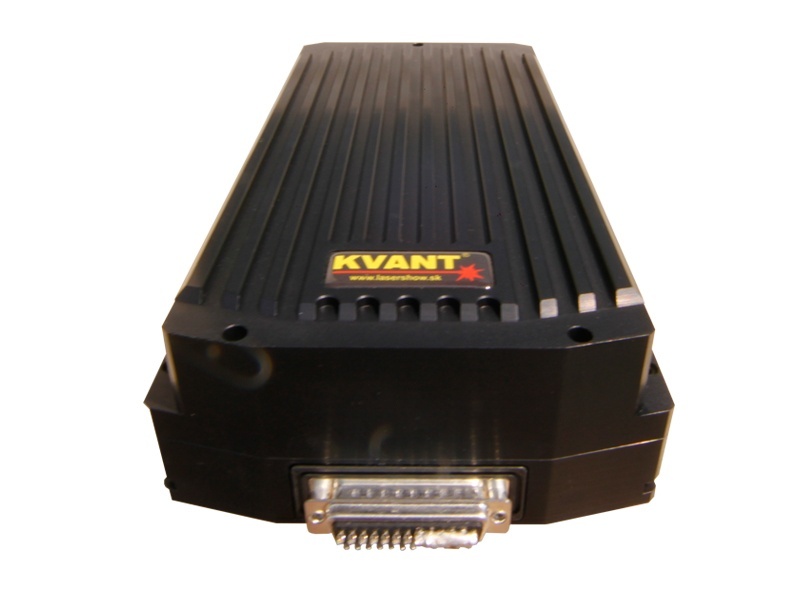

4.3W/660nm laser moduleKVANT
High-quality laser module emitting dark-red coloured beam.
Specification:
Guaranteed optical output
4.3W
Centre wavelength (nm)
660
Centre wavelength tolerance (± nm)
5
Beam size (FWHM, hor. x vert., mm)
5.5x5
Beam divergence (half angle, mrad)
0.8
Linear polarization
N
M2 (horizontal/vertical)
11/10
Modulation frequency
100kHz
Peak Power consumption TEC circuit
24V/6A
Peak Power consumption LD circuit
24V/2A
Input Voltage (V)
24
Module dimensions (L, W, H, mm)
248, 141, 66
Driver dimensions (L, W, H, mm)
117, 89, 34
