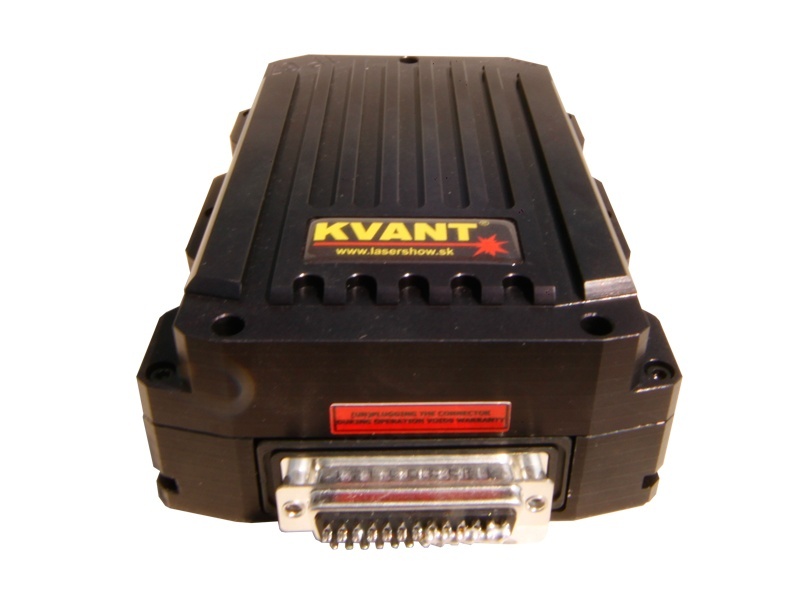

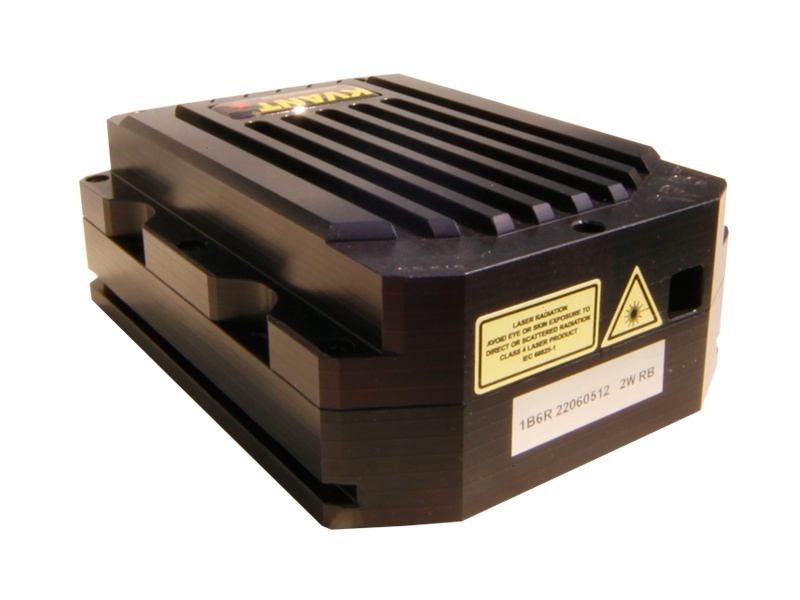

1.8W/660nm laser module KVANT
High-quality laser module emitting dark-red coloured beam.
Specification:
Guaranteed optical output
1.8W
Centre wavelength (nm)
660
Centre wavelength tolerance (± nm)
5
Beam size (FWHM, hor. x vert., mm)
4x3.5
Beam divergence (half angle, mrad)
0.8
Linear polarization
N
M2 (horizontal/vertical)
8/7
Modulation frequency
100kHz
Peak Power consumption TEC circuit
24V/3A
Peak Power consumption LD circuit
24V/1A
Input Voltage (V)
24
Module dimensions (L, W, H, mm)
174, 107, 51
Driver dimensions (L, W, H, mm)
117, 89, 34
