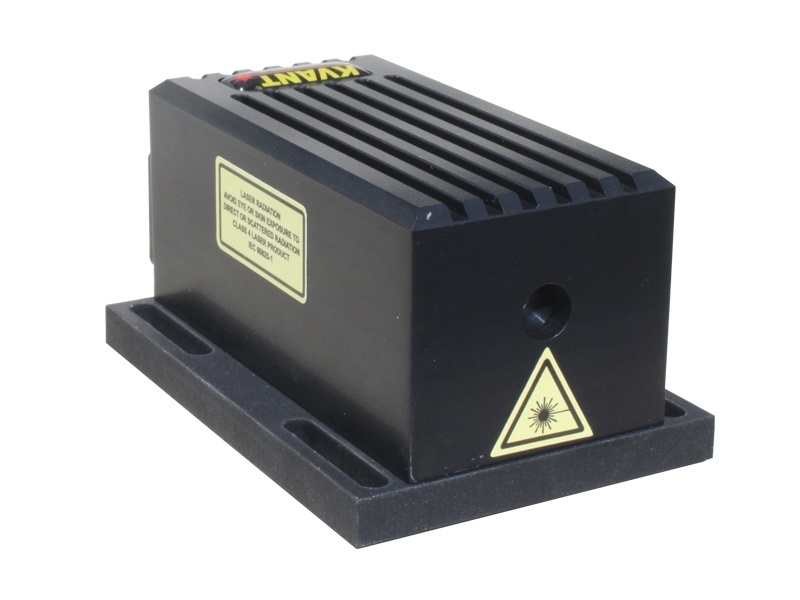

250mW/660nm laser module KVANT
High-quality laser module emitting dark-red coloured beam.
Specification:
| Guaranteed optical output | 250mW |
| Centre wavelength (nm) | 660 |
| Centre wavelength tolerance (± nm) | 5 |
| Beam size (FWHM, hor. x vert., mm) | 2.5x2.5 |
| Beam divergence (half angle, mrad) | 0.2 |
| Linear polarization | N |
| M2 (horizontal/vertical) | 2/2 |
| Modulation frequency | 100kHz |
| Peak Power consumption TEC circuit | 24V/1.5A |
| Peak Power consumption LD circuit | 24V/0.5A |
| Input Voltage (V) | 24 |
| Module dimensions (L, W, H, mm) | 67, 60, 45 |
| Driver dimensions (L, W, H, mm) | 117, 89, 34 |
|
|
