Unity RAW 10 (DMX + ILDA)

Technical Specifications for Unity RAW 10 (DMX + ILDA)

Source | Type:

Semiconductor laser diode | Full-colour RGB laser projector

Suitability:

Clubs, DJs, large indoor venues (over 5,000 people), medium sized outdoor shows. Beam show, text, graphic, and mapping capable

System control:

DMX mode, sound active mode, and ILDA mode (we recommend Pangolin FB3QS and QuickShow for ILDA control)

Compliant with:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight [kg]:

12kg

Size [mm]:

Depth: 340 | Width: 247 | Height: 148

Guaranteed opt. output

>10W

R | G | B [mW]:

2,700 | 2,700 | 4,800

Beam size [mm]:

5 x 3

Beam divergence [mrad]:

<1.1mrad [Full Angle]

Modulation

Modulation

X-Y scanners:

30,000 points per second @ 8°, max. 50°

Power requirements [V] | Input:

100-240V/50Hz

Power consumption:

Max. 350W

Operation temperature:

10-40 °C

Included in the set:

Laser projector, Estop box, Estop cable (10M/30ft), ILDA cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card, carton packaging

HW features:

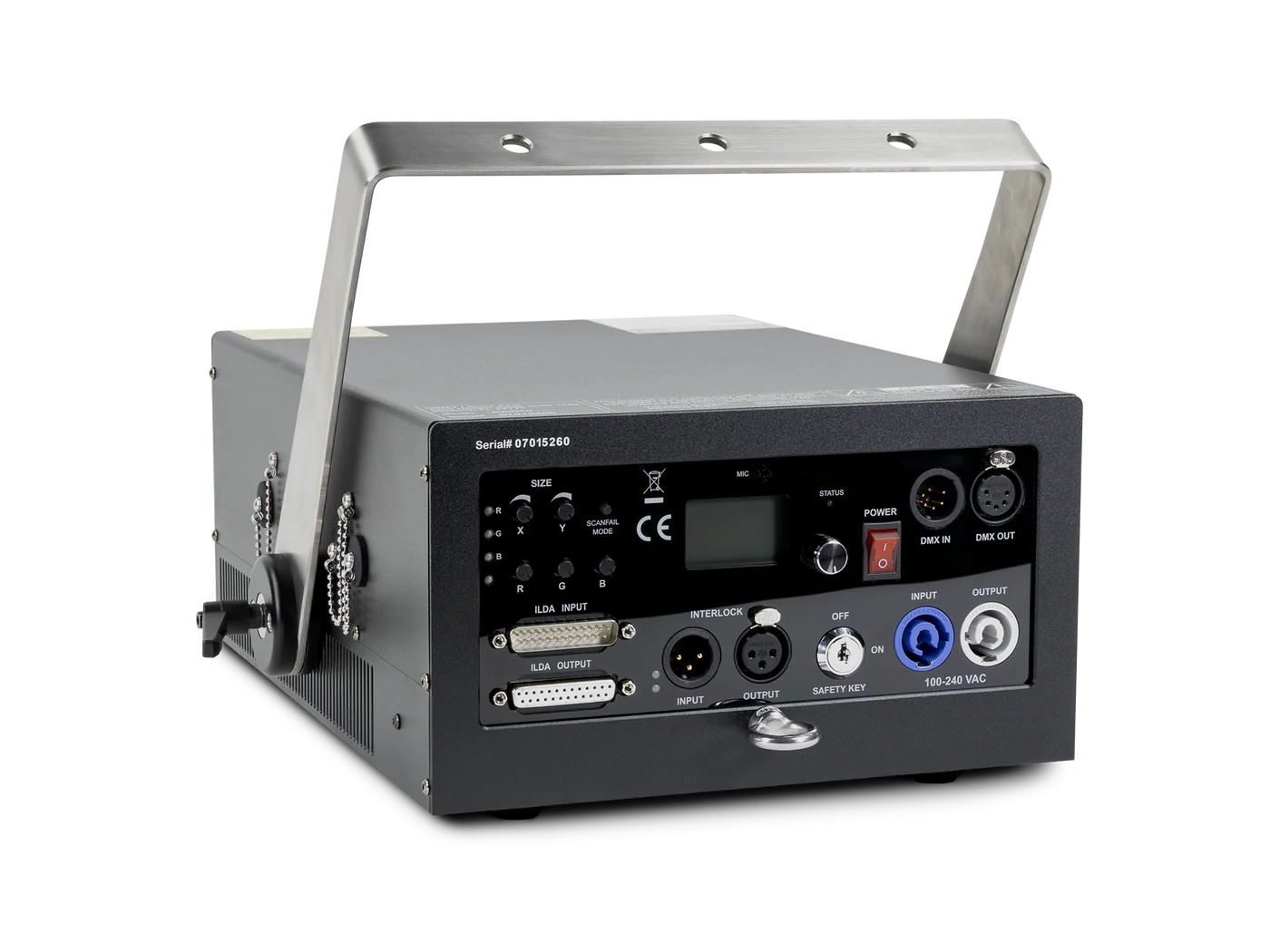

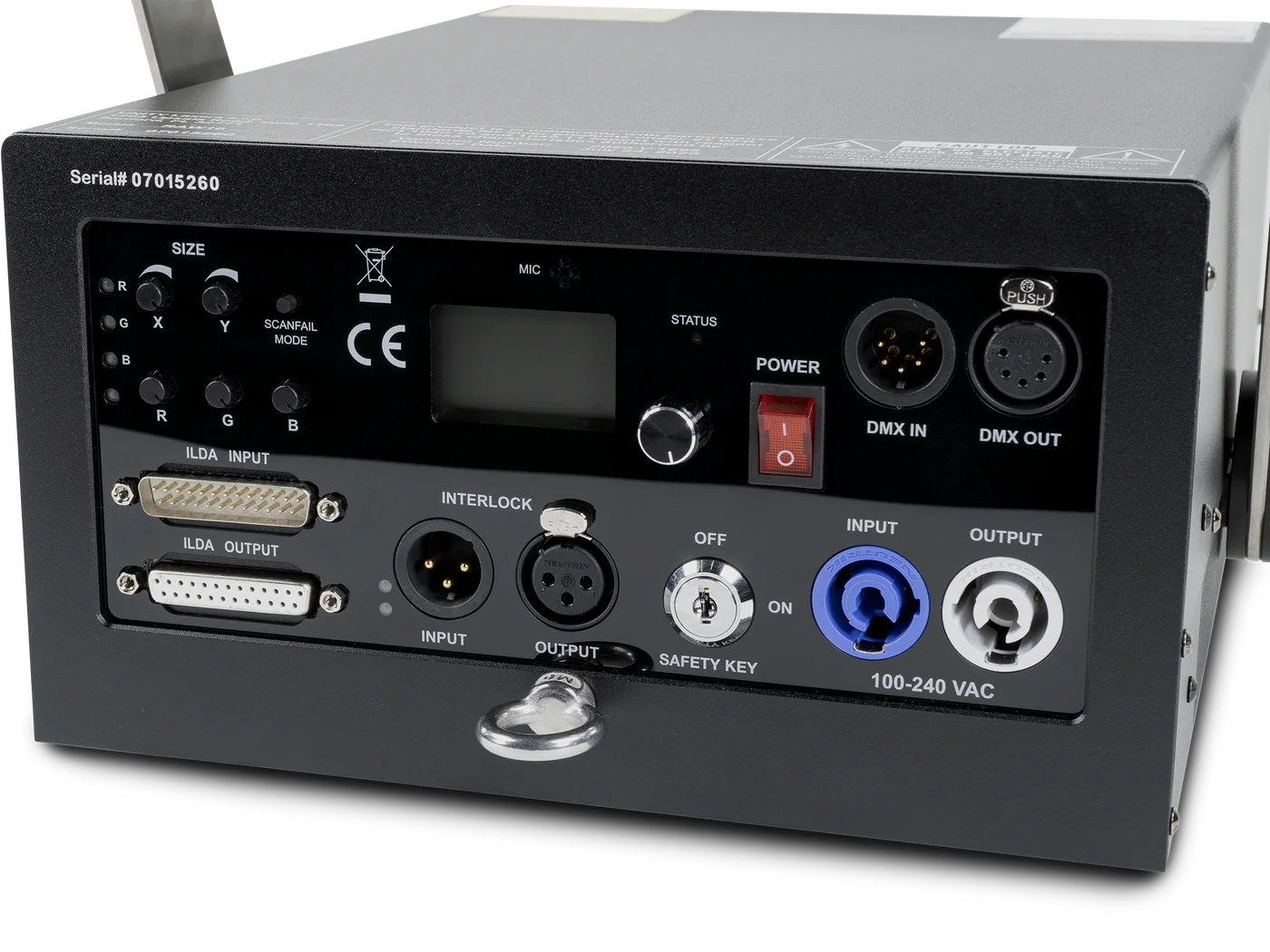

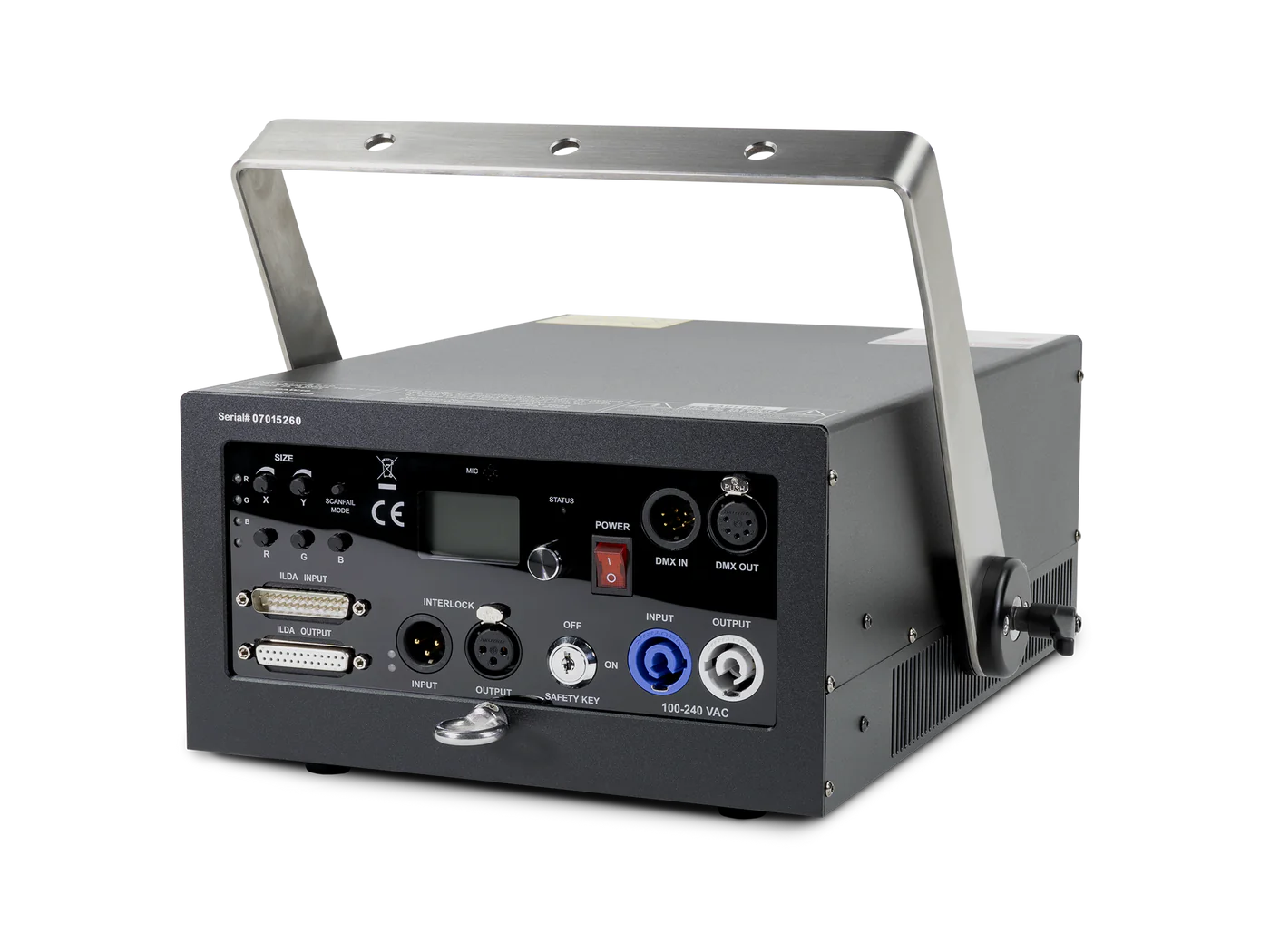

Adjustments for color channels (R,G,B), size/position/invert (X,Y), DMX in/out, ILDA in/out, Estop in/out, power in/out, sound active mode, digital display for DMX address and settings

Laser safety features:

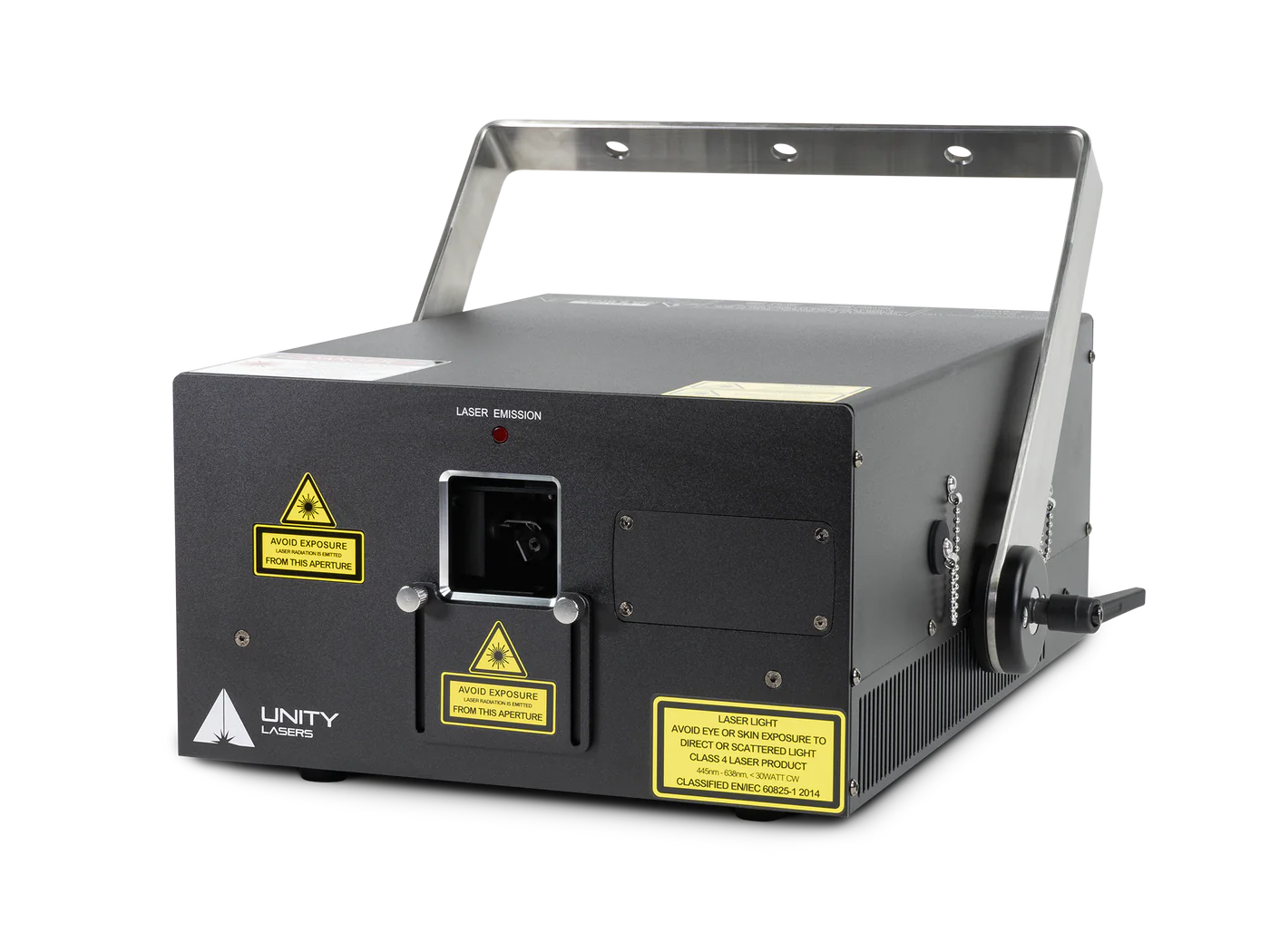

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice

Due to Advanced Optical Correction technology used in Unity systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
