Unity RAW 5 FB4

Technical Specifications for Unity RAW 5 FB4

Source | Type:

Semiconductor laser diode | Full-colour RGB laser projector

Suitability:

Clubs, DJs, large indoor venues (up to 5,000 people), small outdoor shows. Beam show, text, graphic, and mapping capable

System control:

Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

Compliant with:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight [kg]:

8kg

Size [mm]:

Depth: 252 | Width: 247 | Height: 148

Guaranteed opt. output

>5W

R | G | B [mW]:

1,200 | 1,000 | 2,800

Beam size [mm]:

5 x 3

Beam divergence [mrad]:

<1.1mrad [Full Angle]

Modulation

Analog 50kHz

X-Y scanners:

30,000 points per second @ 8°, max. 50°

Power requirements [V] | Input:

Power requirements [V] | Input:

Power consumption:

Max. 150W

Operation temperature:

10-40 °C

Included in the set:

Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card

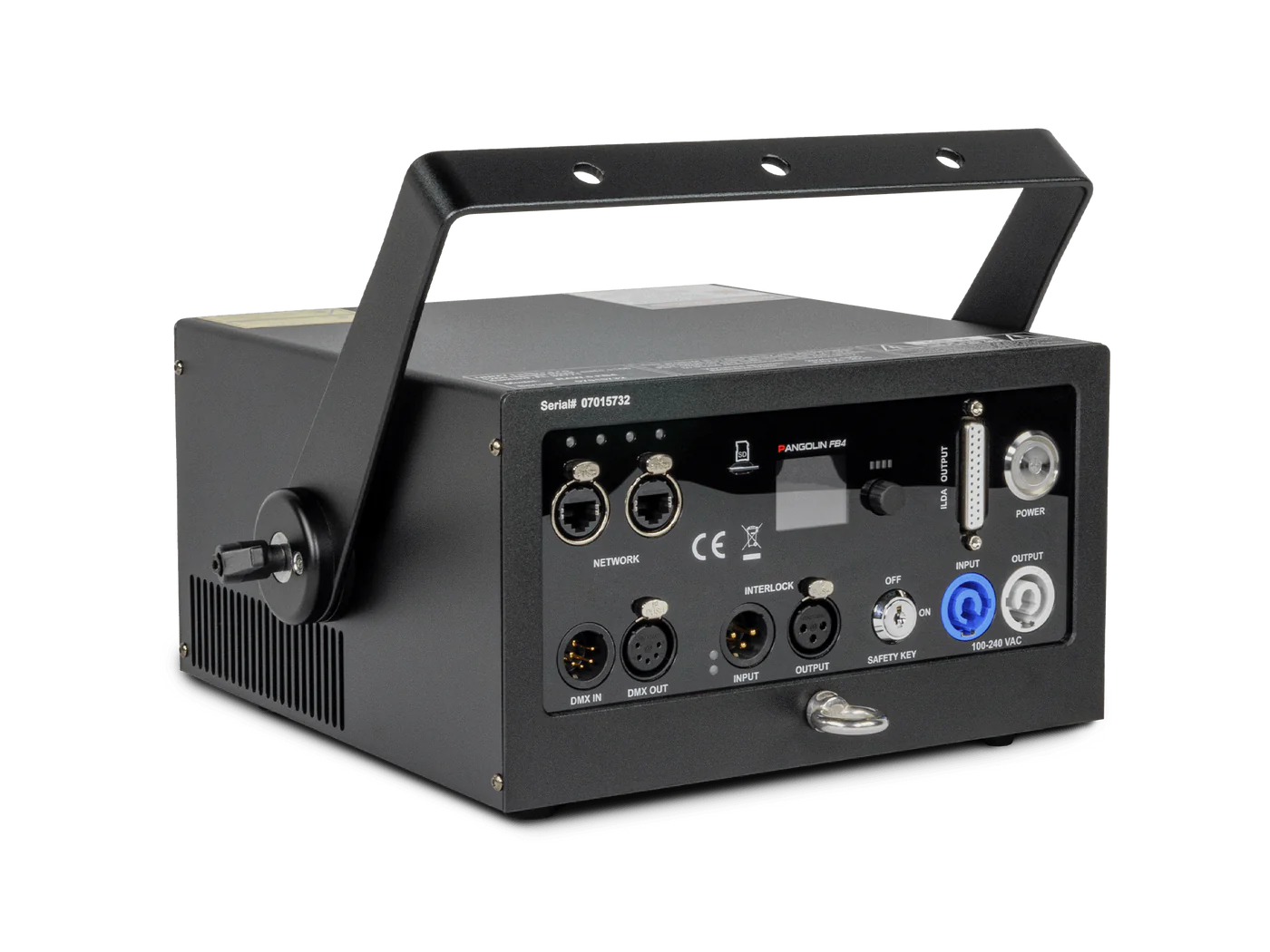

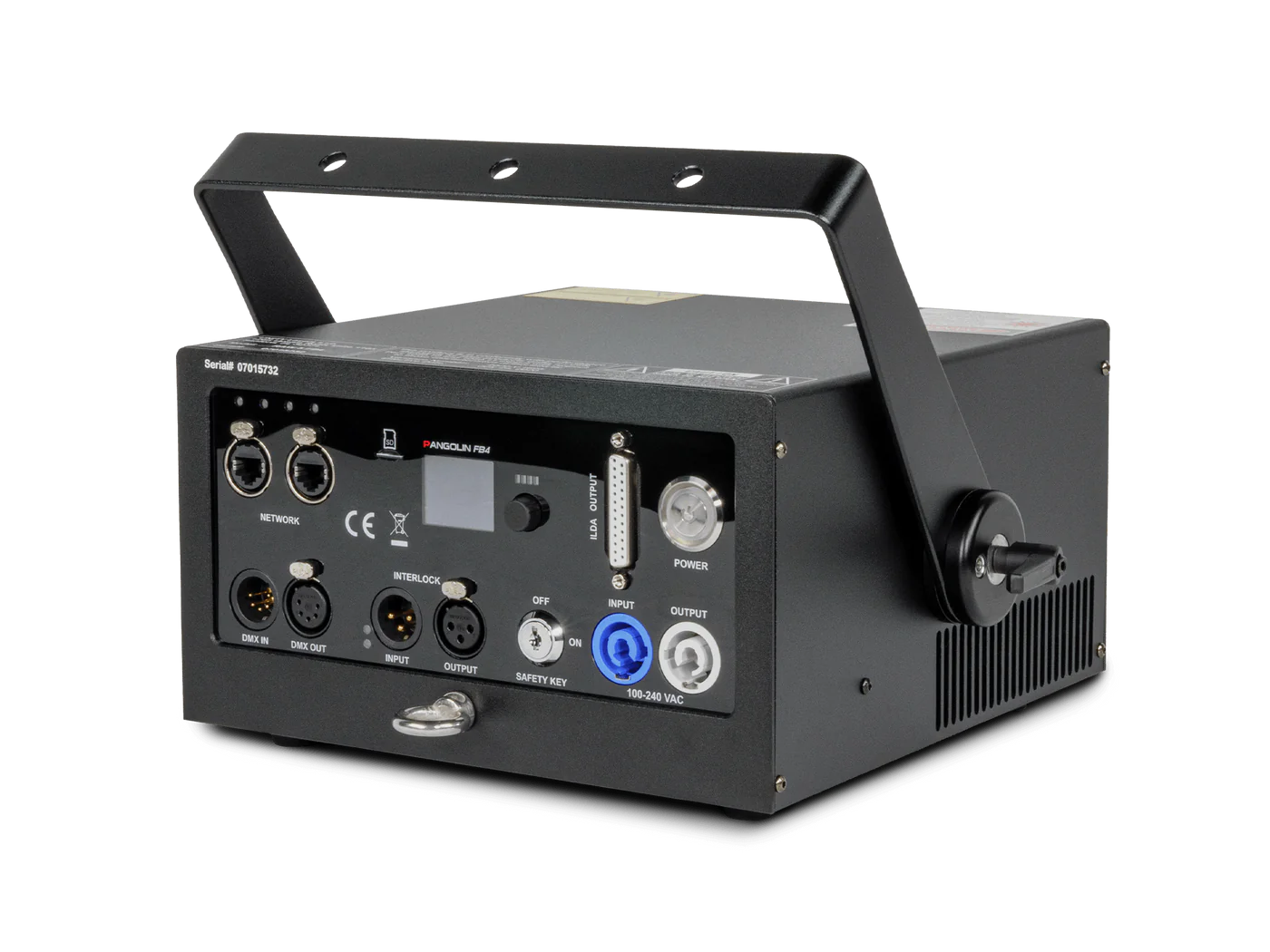

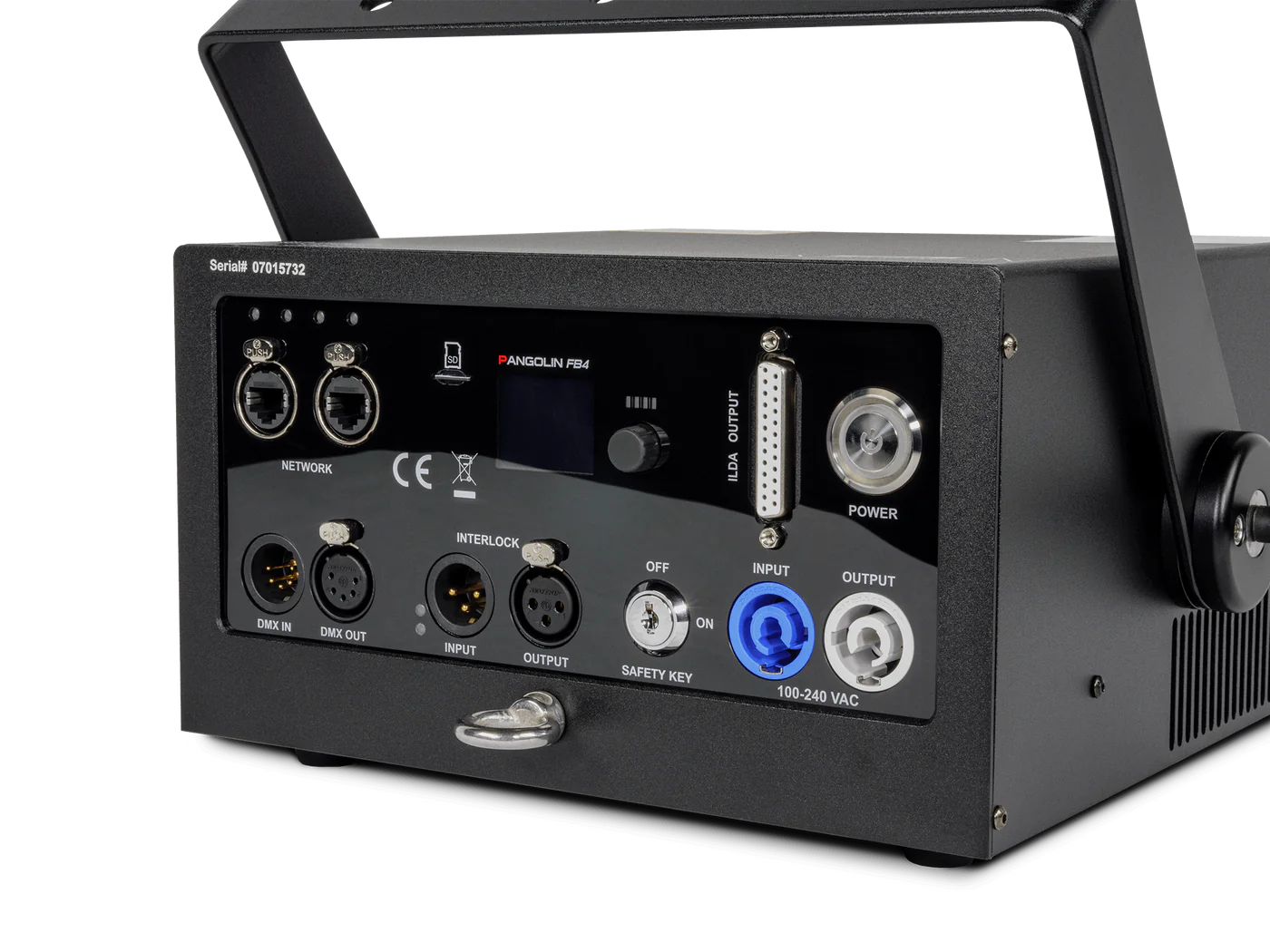

HW features:

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out, ILDA in.

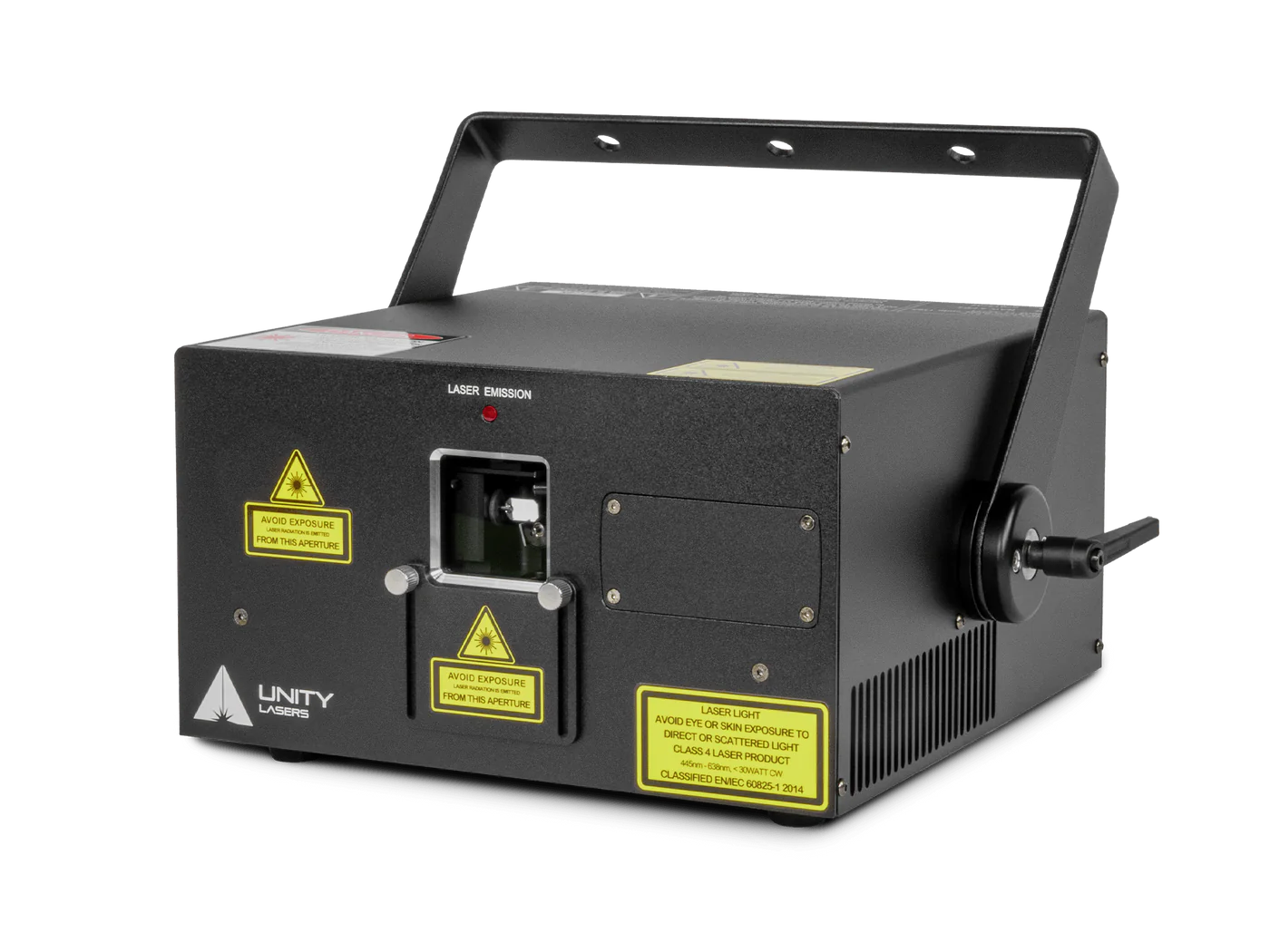

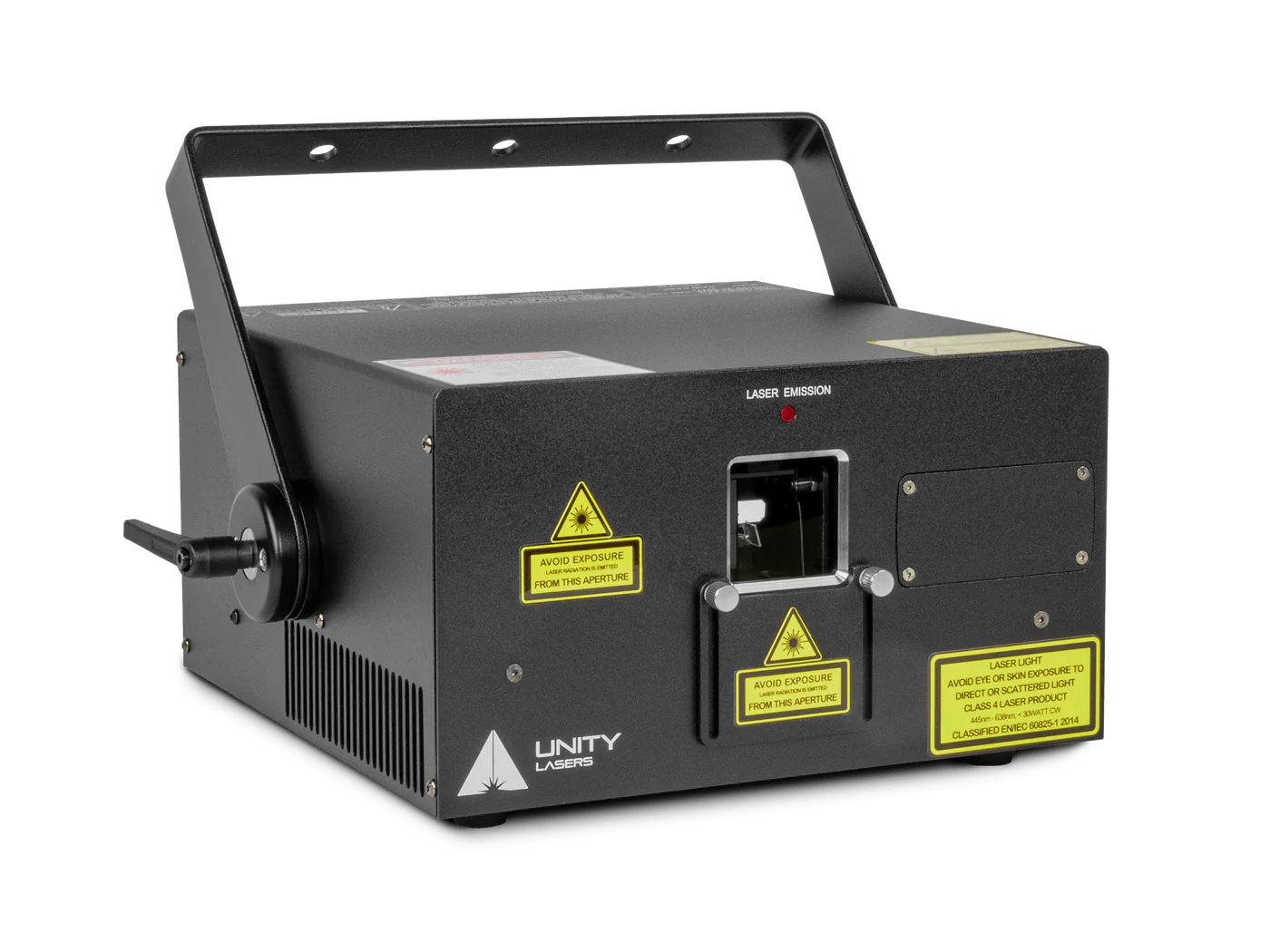

Laser safety features:

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice

Due to Advanced Optical Correction technology used in Unity systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
