Unity ELITE 40 PRO FB4 (IP65)

Technical Specifications for Unity ELITE 40 PRO FB4 (IP65)

Source | Type:

Semiconductor laser diode | Full-colour RGB laser projector

Suitability:

Lighting professionals: arena sized venues (up to 40,000 people), larger outdoor shows. Beam show, text, graphic, and mapping capable

System control:

Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

Compliant with:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight [kg]:

22kg

Size [mm]:

Depth: 439 | Width: 408 | Height: 211

Guaranteed opt. output

>40W

R | G | B [mW]:

11,000 | 14,000 | 16,000

Beam size [mm]:

6 x 6

Beam divergence [mrad]:

<1.2mrad [Full Angle]

Modulation

Analog 100kHz

X-Y scanners:

35,000 points per second @ 8°, max. 45°

Power requirements [V] | Input:

100-240V/50Hz

Power consumption:

Max. 750W

Operation temperature:

(-10°C) - 45°C

Included in the set:

Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, outdoor RJ45 connectors, manual, quickstart guide, variance card

HW features:

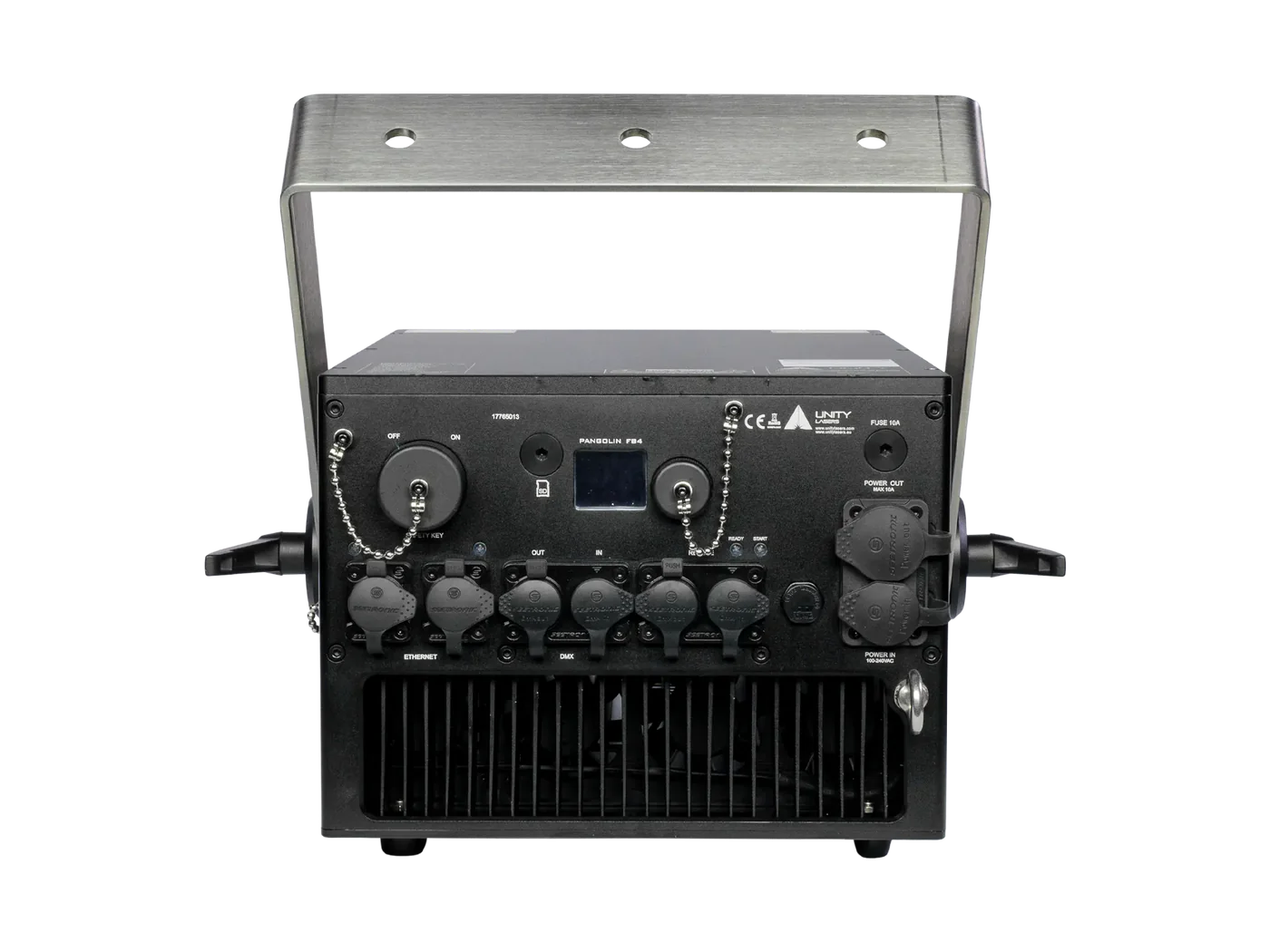

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out

Laser safety features:

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice

Due to Advanced Optical Correction technology used in Unity systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.
