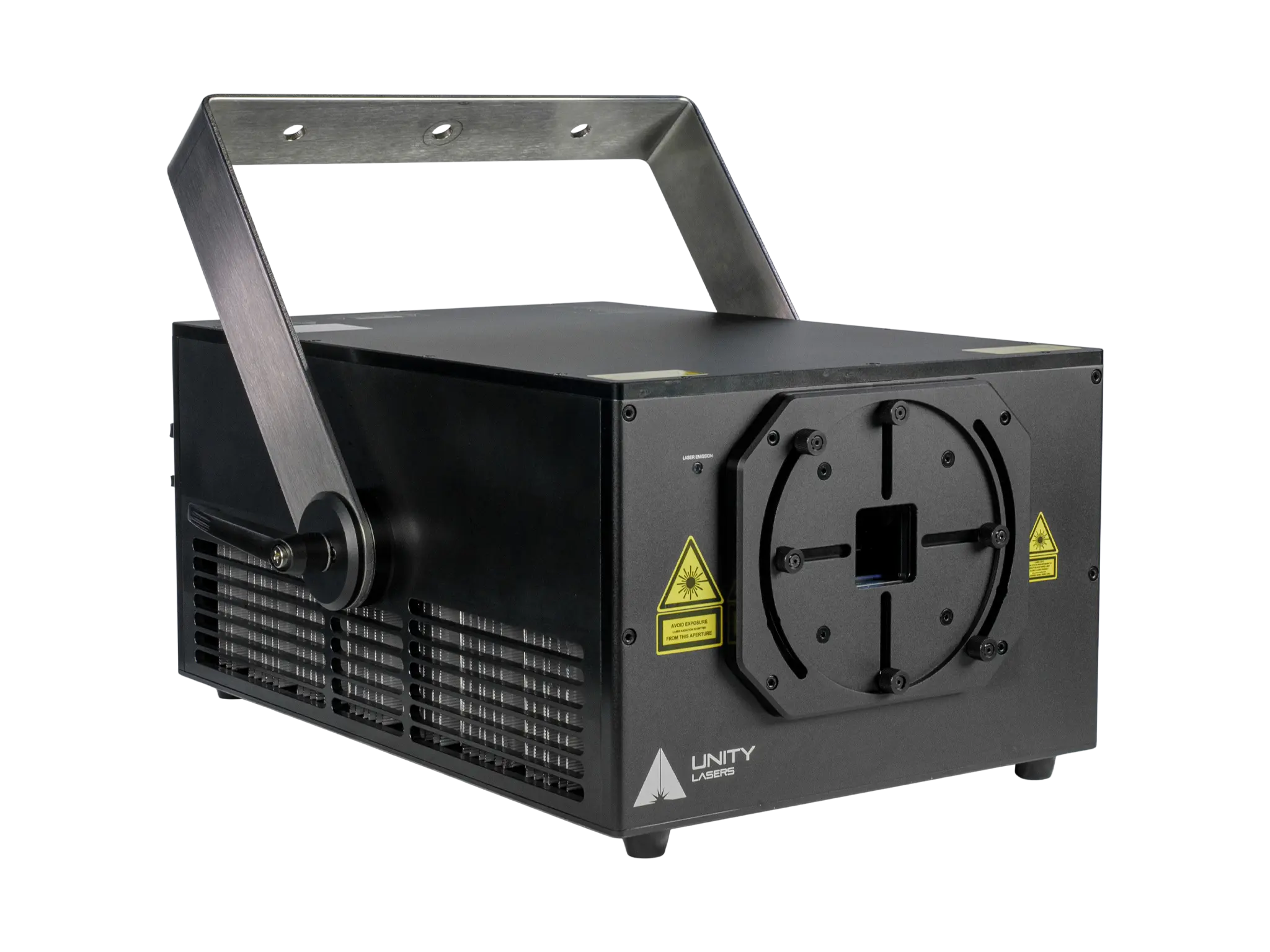

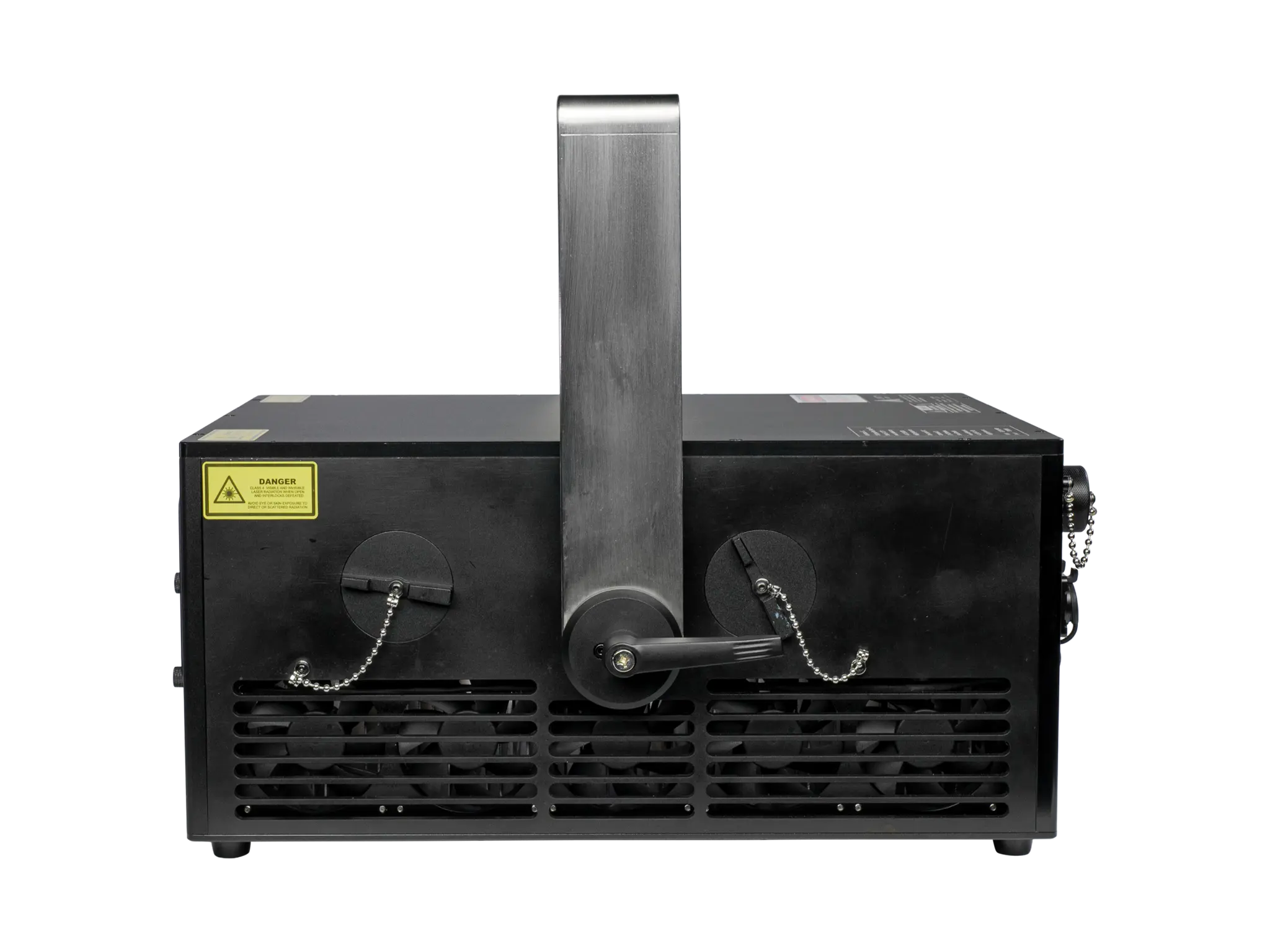

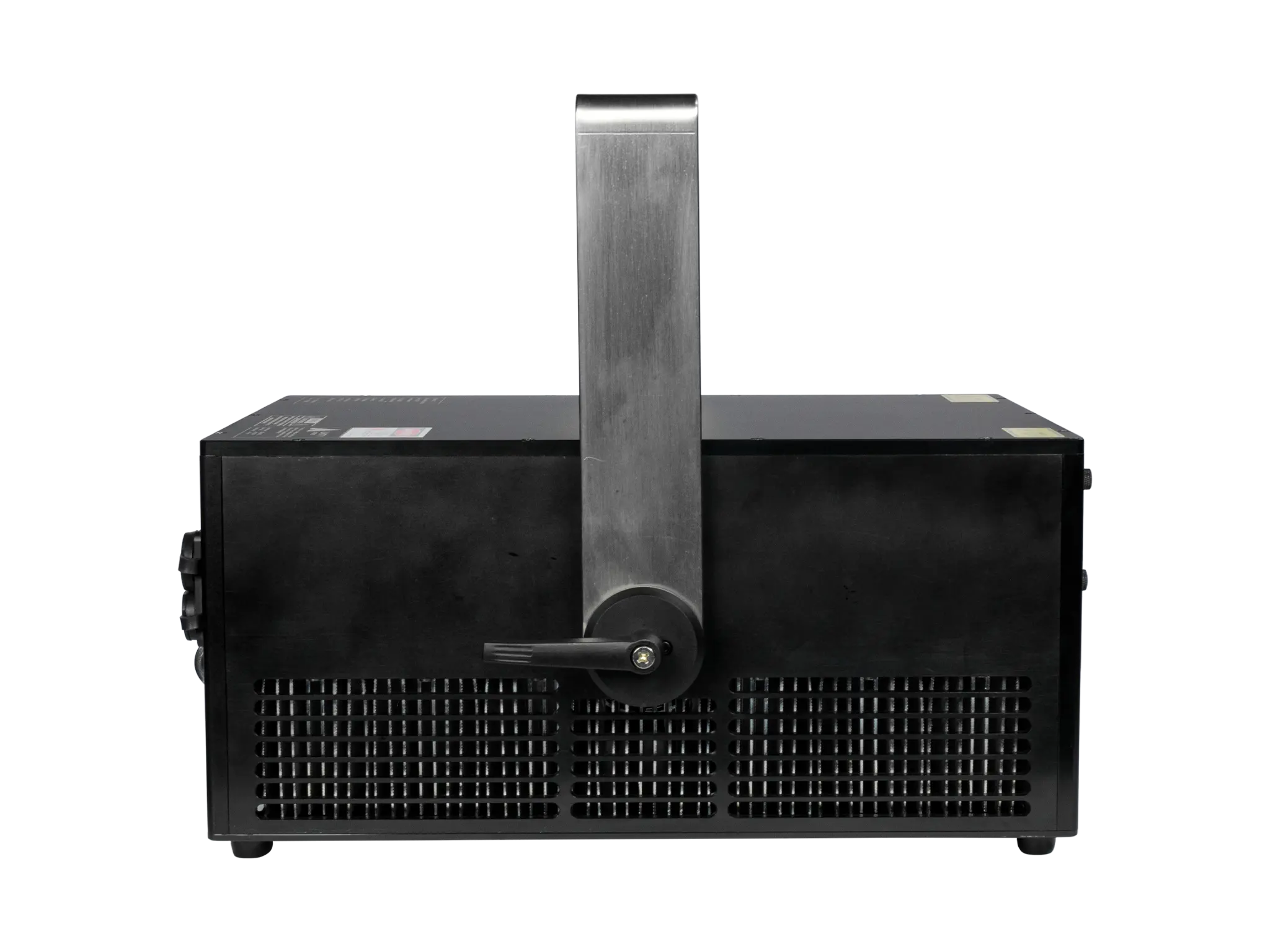

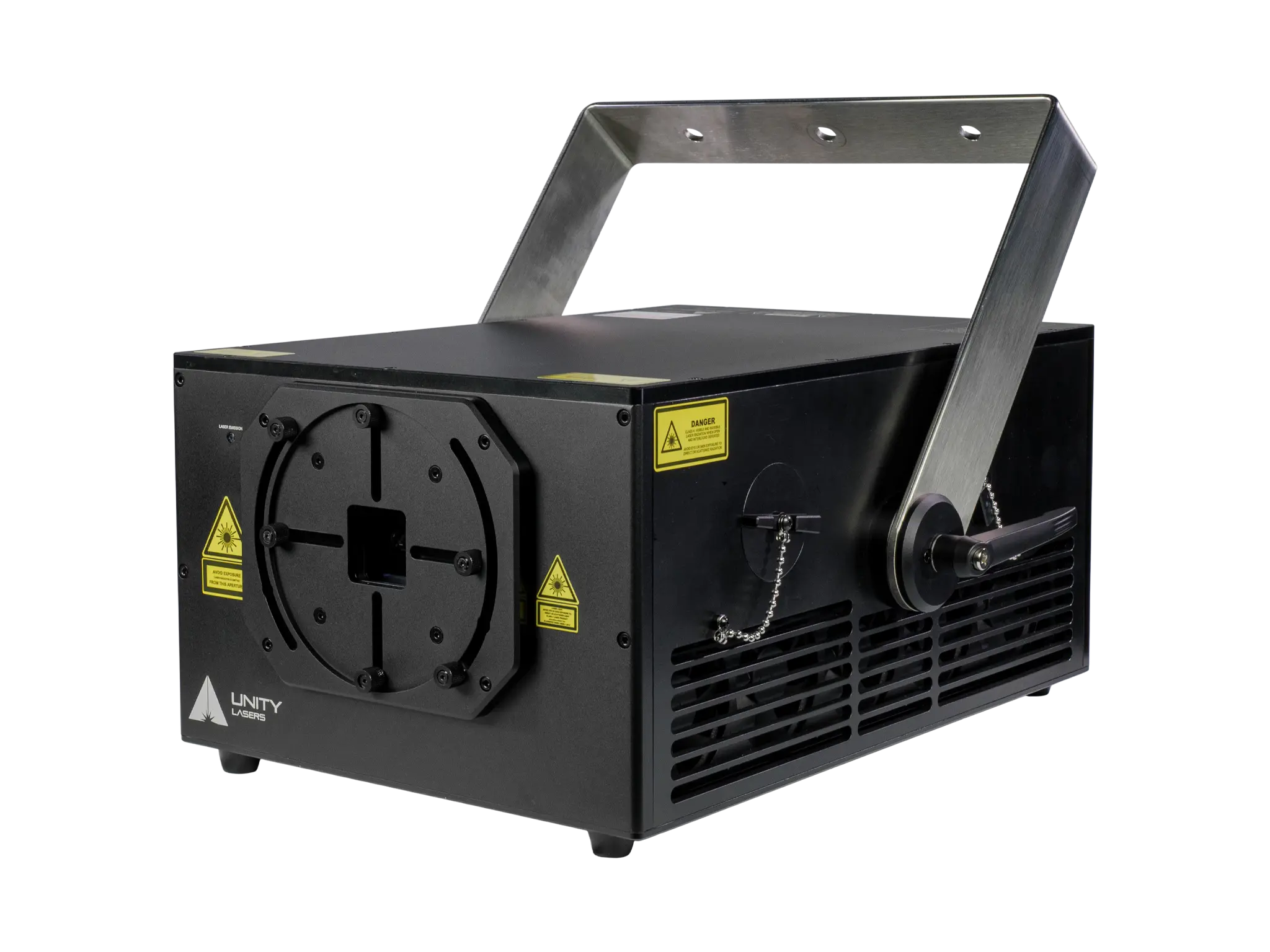

Unity ELITE 60 PRO FB4 (IP65)

Technical Specifications for Unity ELITE 60 PRO FB4 (IP65)

Source | Type:

Full-colour, Semiconductor diode laser system

Suitability:

Lighting professionals: Stadium, arena (over 40,000 people), huge outdoor shows. Beam show, text, graphic, and mapping capable

System control:

Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android]

Compliant with:

Fully complies with the latest EN 60825-1 and FDA regulations

Weight [kg]:

32kg

Size [mm]:

Depth: 509 | Width: 455 | Height: 226

Guaranteed opt. output

>59.5W

R | G | B [mW]:

19,500 | 20,000 | 20,000

Beam size [mm]:

7 x 7

Beam divergence [mrad]:

<1.2mrad [Full Angle]

Modulation

Analog 100kHz

X-Y scanners:

30,000 points per second @ 8°, max. 45°

Power requirements [V] | Input:

100-240V/50Hz

Power consumption:

Max. 1200W

Operation temperature:

(-10°C) - 45°C

Included in the set:

Laser projector w/ FB4 DMX, IP65 housing, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, outdoor RJ45 connectors, manual, quickstart guide, variance card

HW features:

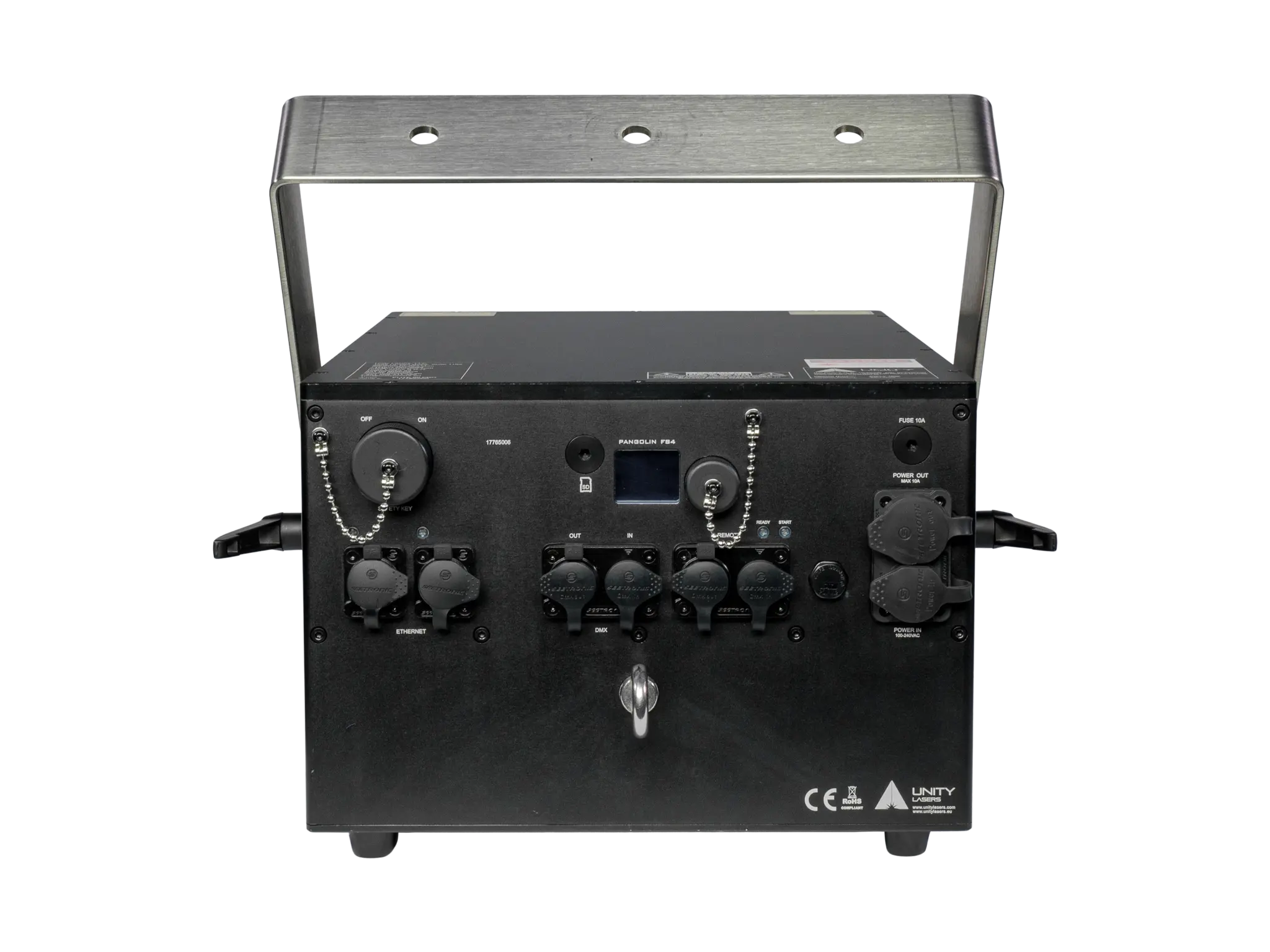

All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in/out, power in/out, DMX in/out, Estop in/out

Laser safety features:

Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate

Notice

*Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output
