KVANT Architect series - extremely bright single-beam architectonic and sky lasers |
驚異的な明るさ |
RYGB | Up to 900 Watts |
IP67 | DMX |
Architect |
イギリスでのイベント | |
用途
ランドマーク、光の目印、建物オブジェや災害時、緊急事態の警告などの一部として

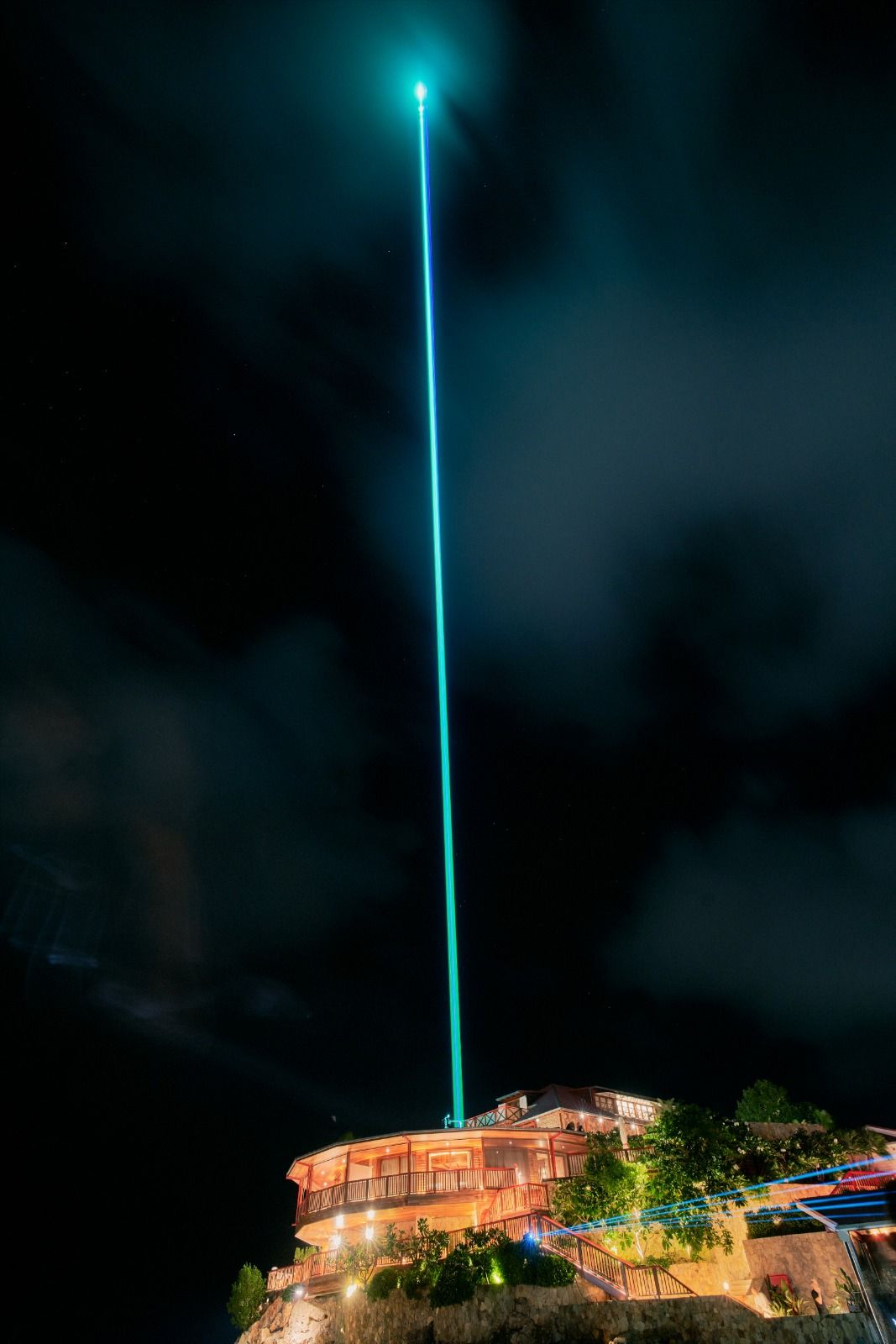

スロバキアでのテストの様子 |
この写真はArchitect300です。
サーチライトは色々な物が世の中に多く存在しています。しかし、当社のソリューションは、従来の放電スペースライトと比較すると、はるかに高い光変換率により多くの電力を消費する事なくウルトラ明るいビームを実現しました。
・ ウルトラ高出力
・ 低消費(省エネルギー)
・ 光源の長寿命
・ ロービーム発散
・ 低メンテナンス
付属する物
Laser projector |
Inbuilt Mains cable |
Inbuilt Mains cable |
E-STOP with inbuilt XLR cable |
0-5 Volt RGB controller |
Safety keys |
USB drive with Manual |
QC Certificate |
技術仕様書 | ||
Architect270B | Architect660B | Architect900B |
KVANT製品はアメリカのFDAに準じた安全機能を満たした製品です。
International Electrotechnical Commision (IEC)からインターナショナル証明書を取得しています。工場認定
ISO 9001:2000、ISO14001:2004、OHSAS 18001:2007 証明書
仕 様 | |||
機種名 | Architect270B | Architect660B | Architect900B |
出力 | 270W | 660W | 900W |
モジュール Red 637nm Green 520nm Blue 450nm |
R 112W G 96W B 64mW |
R 269W G 224W B 168W |
R 365W G 305W B 230W |
ビーム径 | 250 x 880 or custom | 390 x 1350 or custom | 460 x 1450 or custom |
ビーム発散度 | 3.2 [full angle, averaged value], or custom | 10 [full angle, averaged value], or custom | 10 [full angle, averaged value], or custom |
発光効率[lm] | 63,700 |
150,000 | 204,000 |
ブランキング | 0-5V analog, up to 100kHz | ||
インターフェイス | Analog 0-5 Volts or DMX | ||
環境温度 | 使用環境温度5-35°C、保管環境温度0-50℃(結露しないこと) | ||
重量 | 60Kg | 130Kg | 160Kg |
消費電力 | 2000VA | 5000VA | 6000VA |
冷却 | water, ~ 6 l per minute, 10 degrees Celsius | water, ~ 12 l per minute, 10 degrees Celsius | water, ~ 12 l per minute, 10 degrees Celsius |
サイズ | 約1069 x 363 x 540 | ||
調光 | 0~100% | ||
IP | IP67 |
その他の動画や写真 |
1 2 |
新製品はこちらをご覧ください。 |
仕様、及びデザイン、機能などの情報は、予告なく変更される場合があります。
