ATOM XR18
- The XR - an innovative type of powerful RGB outdoor laser projector based on an entirely new architecture. We are pioneering again! -

FULL-COLOUR OUTPUT

AND VERY COMPACT

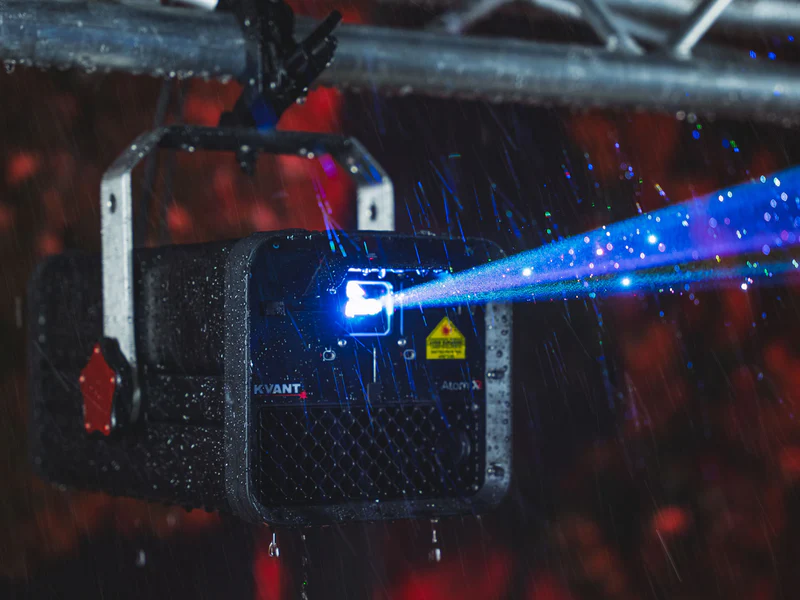

FULLY WATERPROOF

OVERVIEW SPECIFICATIONS DOWNLOADS CONTACT US

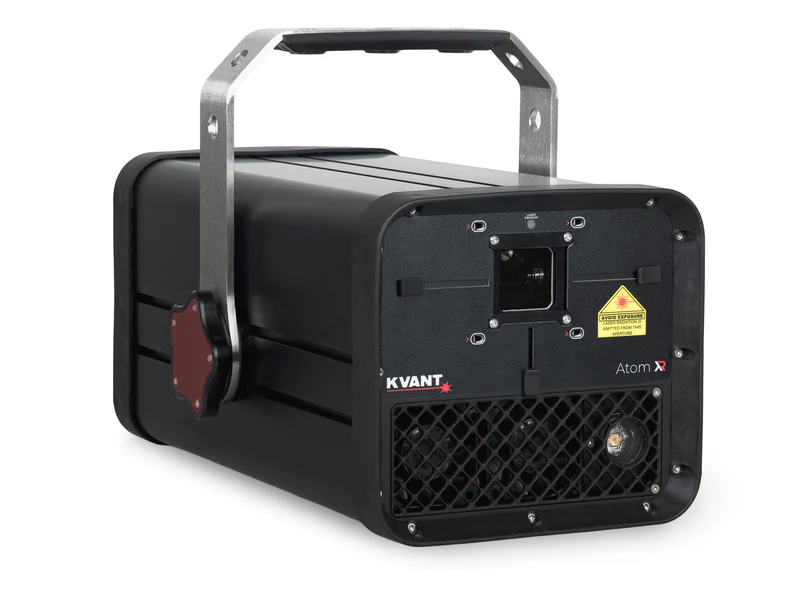

ATOM XR18

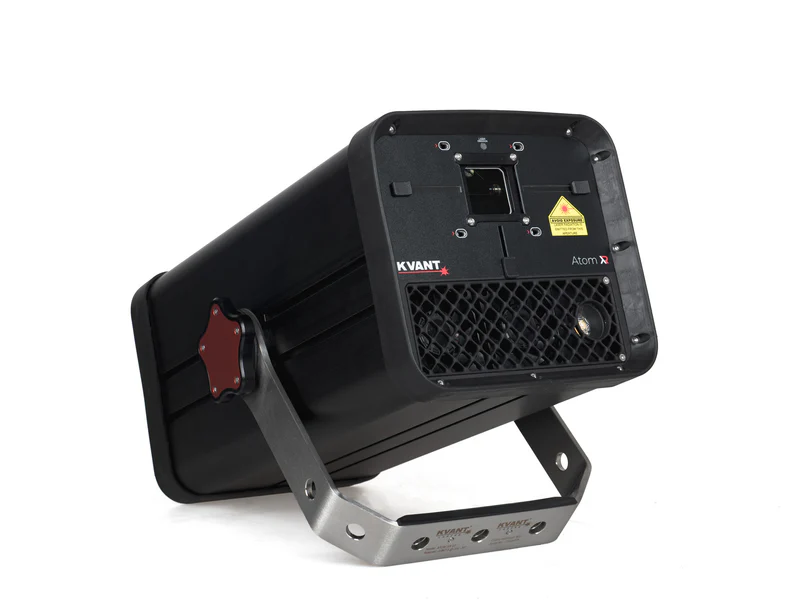

Designed from scratch utilising only the best of our technology and knowledge, following customers’ needs and wishes, and adding a pinch of Kvant’s magic, the Atom XR is the only laser projector you will ever need for 99% of all shows.

It is compact and light, 100% made in Slovakia, and with no corners cut.

The XR comes with laser modules and a cooling structure built on a new state-of-the-art architecture.

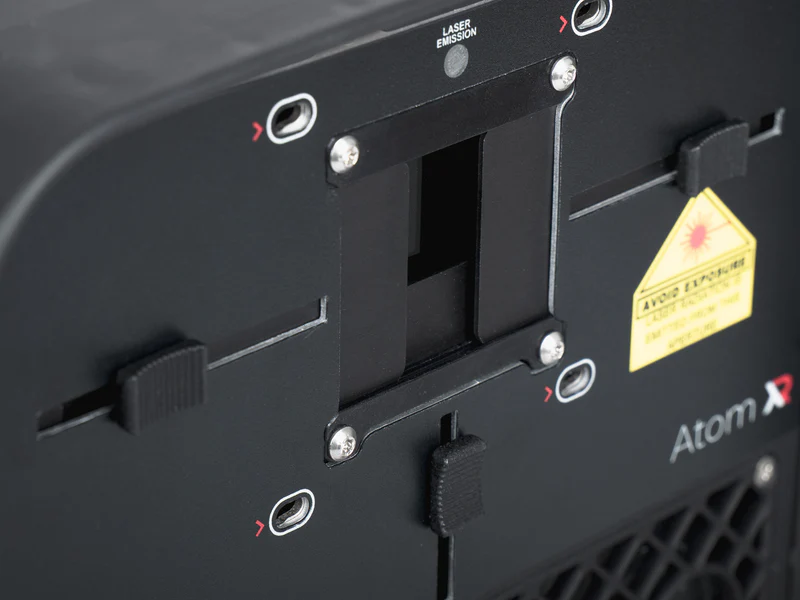

It’s fitted with precise Juno scanners, an FB4 control interface, aperture masking plates, a 360-degree swivel-sliding mounting bracket, a retractable safety rope, and a device stage locator.

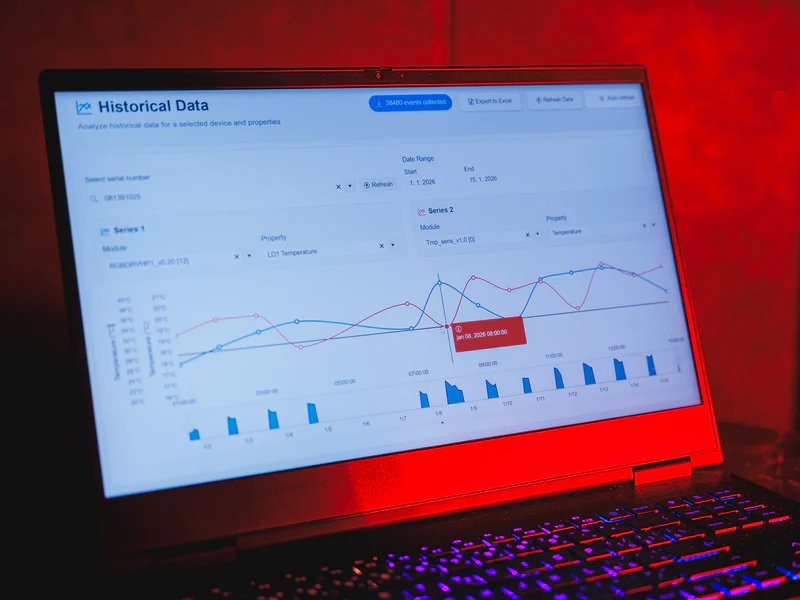

The best bit is the built-in multilevel telemetry, which offers instant online access to device data such as serial number, __cpLocation, on/off status, temperatures of various subsystems, usage times, tilt, and much more. This gives you total control over your equipment.

ATOM XR18 specification table

Source | IP-rating | Type:

Semiconductor laser diode | IP65 | Full-colour RGB laser projector

Suitability:

Outdoor laser displays [atmospheric, abstract, text, animations]

System control:

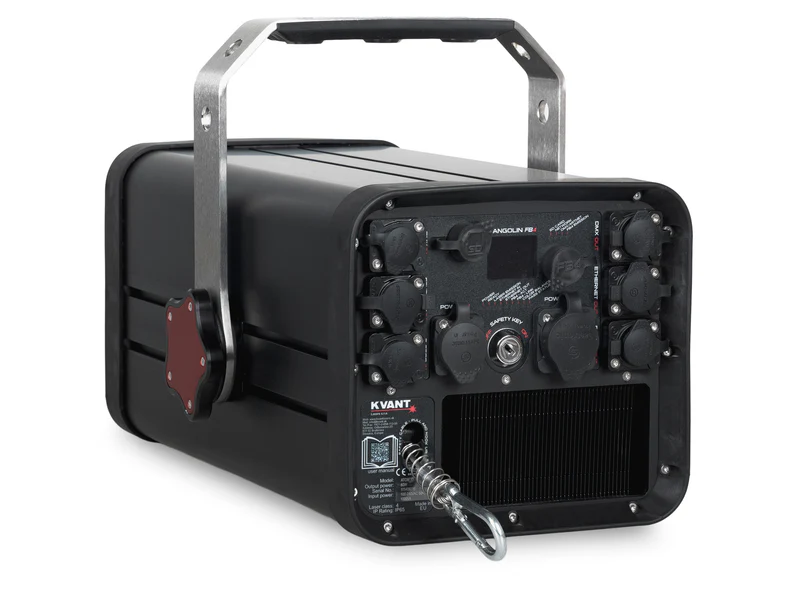

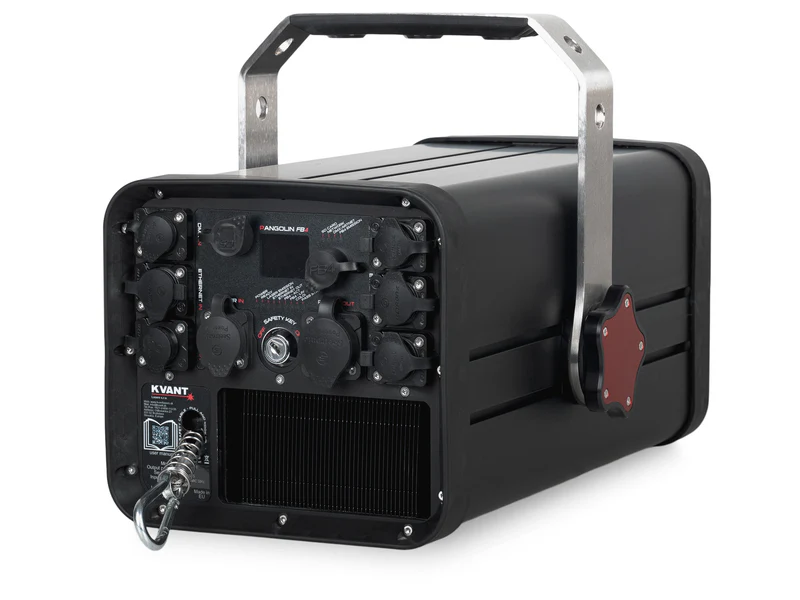

FB4-SK [Ethernet, ArtNet, DMX, ILDA | PC, Lighting Console or Autoplay]

Compliant with:

EN 60825-2

Weight [kg]:

Size [WxHxD, mm]:

209 x 194 x 408

Guaranteed opt. output

17.5 watts

Installed modules R | G | B [W]:

4 | 5.5 | 9 *note A

Wavelengths [nm, ±5nm]:

638 | 525 | 455

Beam size [mm]:

7 x 7

Beam divergence [mrad]:

max. 1.1 mrad [full angle, **note]

Analogue modulation [kHz]

100

X-Y scanners:

Juno 5 | 30 kpps @ 8°, max. scanning angle 50° on both axes

Power requirements [V] | Input:

100-240/50-60Hz | Neutrik powerCON TRUE1

Max. power consumption [VA]:

800

Operation temperature [°C]:

10-40 [Monsoon protection enclosure with AC unit on request]

Included in the set:

Heavy-duty flight case, IP65 1.5M AC power cable, IP65 25M Ethernet rj45 signal cable, E-STOP Remote with IP65 25M 3-pin XLR cable, Set of 4 safety keys, Interlock bypass dongle [supplied for the USA only], USB memory stick with the user manual, QC certificate. Pangolin QuickShow laser control and creation software is available for FREE download.

HW features:

Telemetry sensors

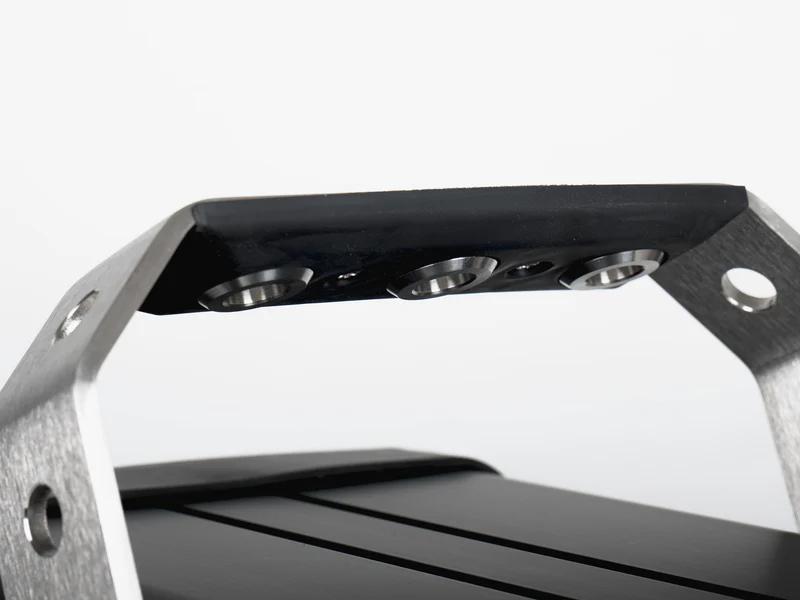

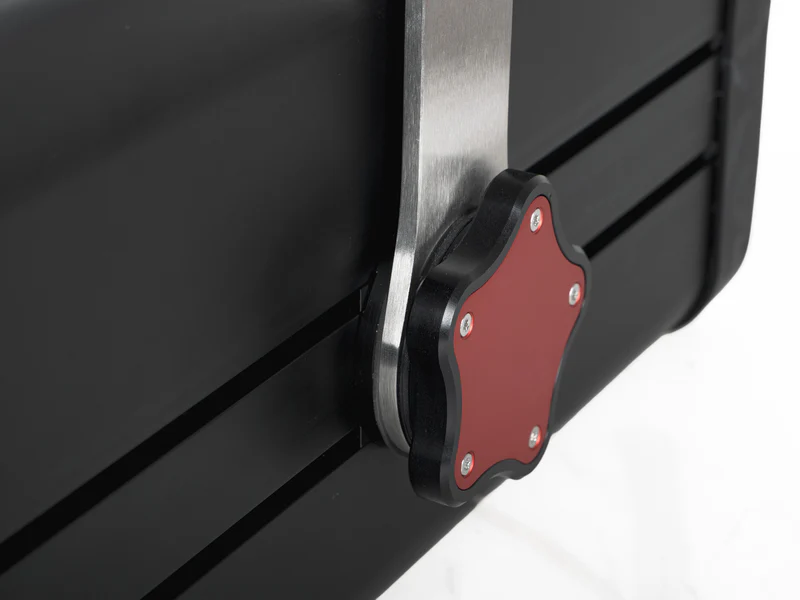

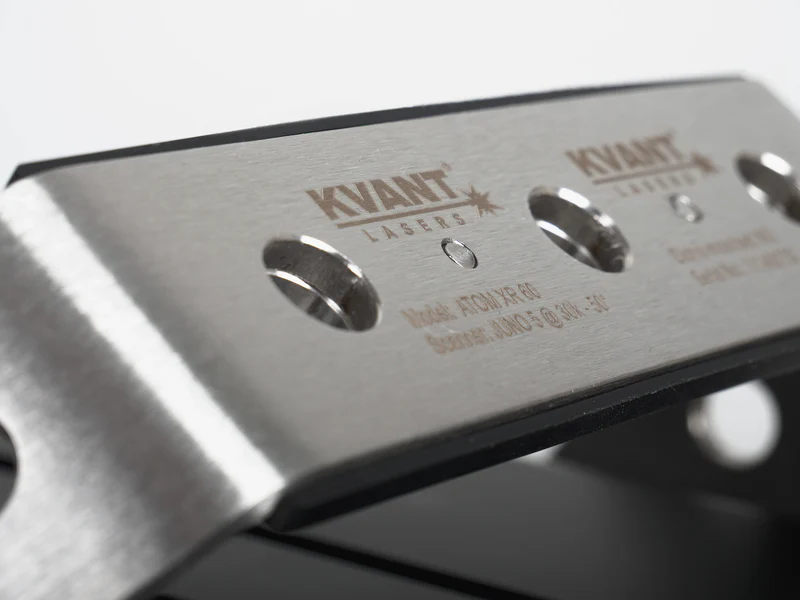

360-degree swivel-sliding mounting bracket

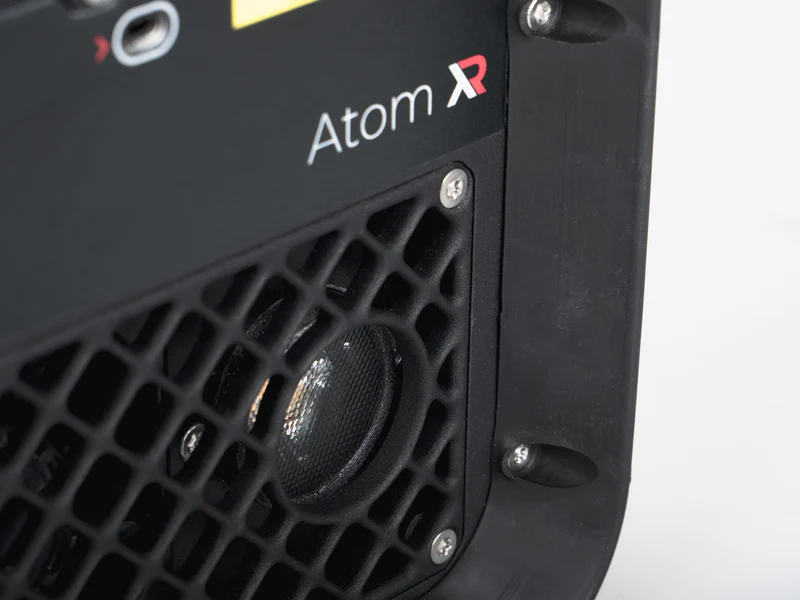

DMX-controlled LED blinder / Device Stage Identifier (5-watt COB LED, 4000K, 920lm, focused to 10 degrees)
Retractable safety rope
An aiming piece with a spirit level
Scanning system overload protection
All the basic system settings and adjustments, such as power output adjustment for each colour, X & Y axes invert, X & Y size and position, etc., are managed via the built-in FB4 control interface.

Laser safety features:

Keyed interlock, emission delay, magnetic interlock, scan-fail safety, fast electromechanical shutter [reaction time <20ms], adjustable aperture masking plates, inbuilt retractable safety rope, Emergency STOP system with keyed remote and manual RESTART button.

note A

Due to Advanced Optical Correction technology used in Kvant systems, the real power output of each laser module installed within the system may slightly differ from its specification. This doesn't affect the total guaranteed power output of the system.

note B

The beam divergence total is calculated as an average arithmetic value of all individual colours. The divergence of each colour is calculated as:
