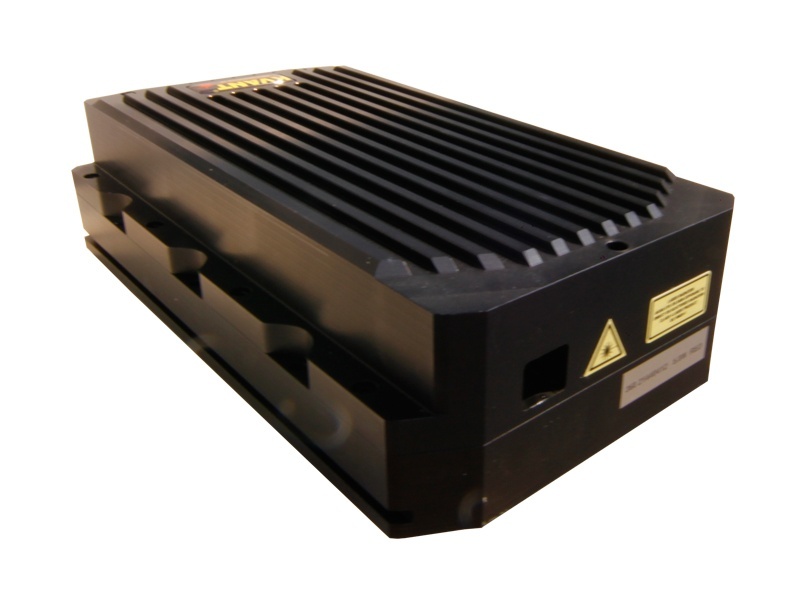

3W/637nm+660nm Low divergence laser module KVANT
3W/637nm+660nm Low divergence laser module KVANT
High-quality laser module emitting a combination of bright and dark RED coloured beam with extremely low divergence!
Specification:
High-quality laser module emitting a combination of bright and dark RED coloured beam with extremely low divergence!
Specification:
| Guaranteed optical output | 3W (1.7/637nm + 1.3/660nm) |
| Centre wavelength (nm) | 637 & 660 |
| Centre wavelength tolerance (± nm) | 5 |
| Beam size (FWHM, hor. x vert., mm) | 5x5 |
| Beam divergence (half angle, hor. x vert., mrad) | 0.2 |
| Linear polarization | N |
| Modulation frequency | 100kHz |
| Peak Power consumption TEC circuit | 24V/6A |
| Peak Power consumption LD circuit | 24V/2A |
| Input Voltage (V) | 24 |

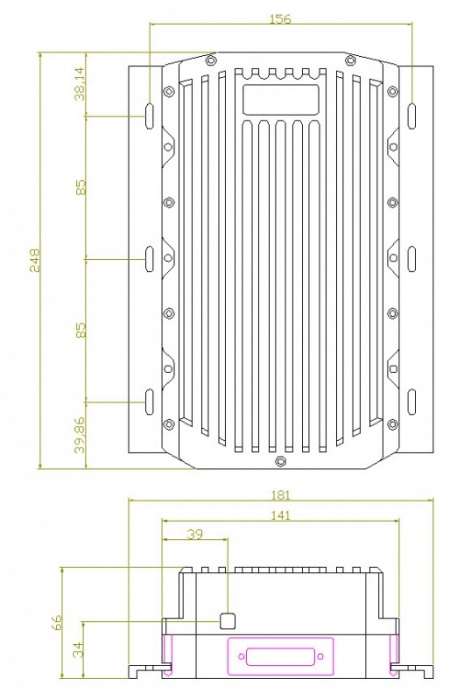

| Module dimensions (L, W, H, mm) | 248, 141, 66 |

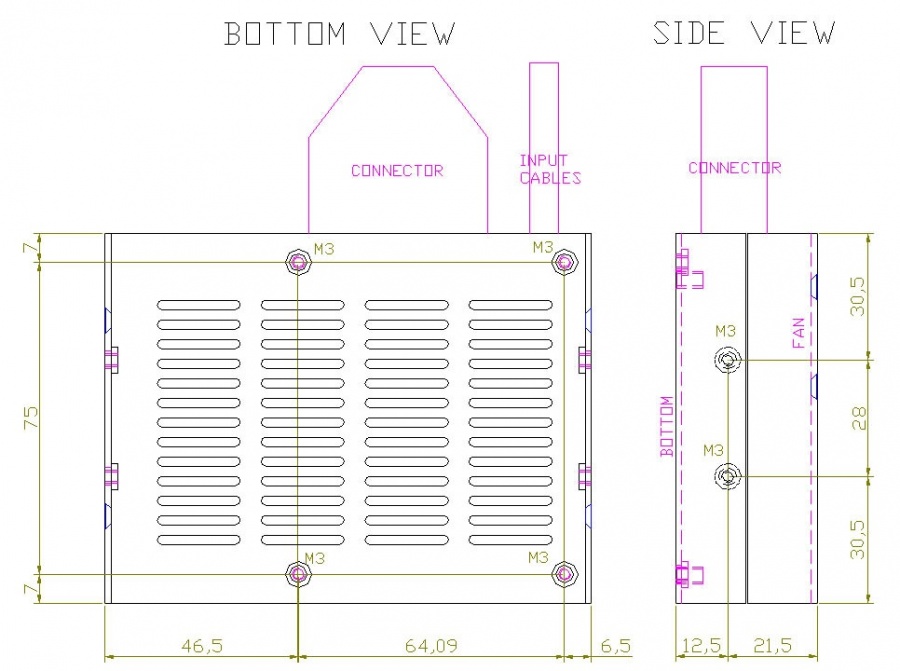

| Driver dimensions (L, W, H, mm) | 117, 89, 34 |
|
|
|
|
