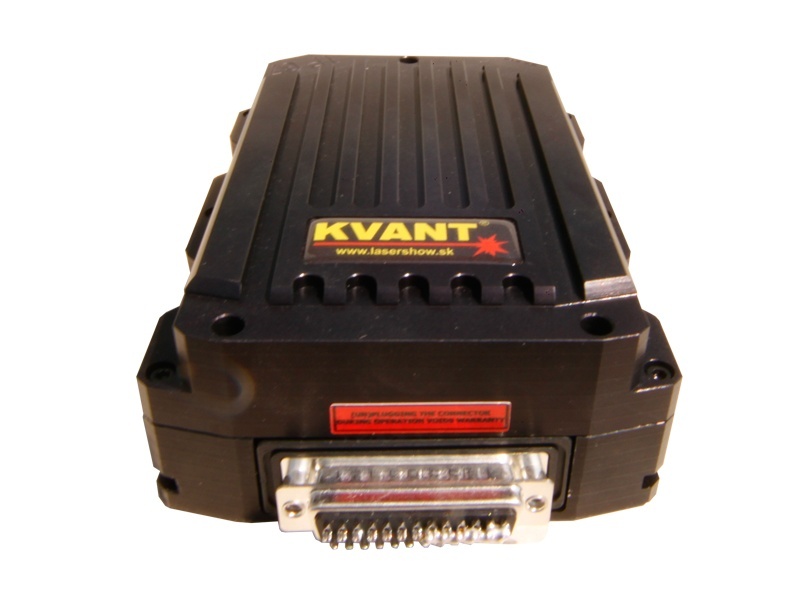

4.3W (1.3W/637nm+3W/445nm) DUAL laser module KVANT
4.3W (1.3W/637nm+3W/445nm) DUAL laser module KVANT
High-quality laser module emitting bright RED and deep BLUE coloured beams.
Specification:
High-quality laser module emitting bright RED and deep BLUE coloured beams.
Specification:
| Guaranteed optical output | 4.3W |
| Centre wavelength (nm) | 637 & 445 |
| Centre wavelength tolerance (± nm) | 5 |
| Beam size (FWHM, hor. x vert., mm) | 3x4.5 |
| Beam divergence (half angle, hor. x vert., mrad) | 0.8 |
| Linear polarization | N |
| Modulation frequency | 100kHz |
| Peak Power consumption TEC circuit | 24V/3A |
| Peak Power consumption LD circuit | 24V/2.5A |
| Input Voltage (V) | 24 |

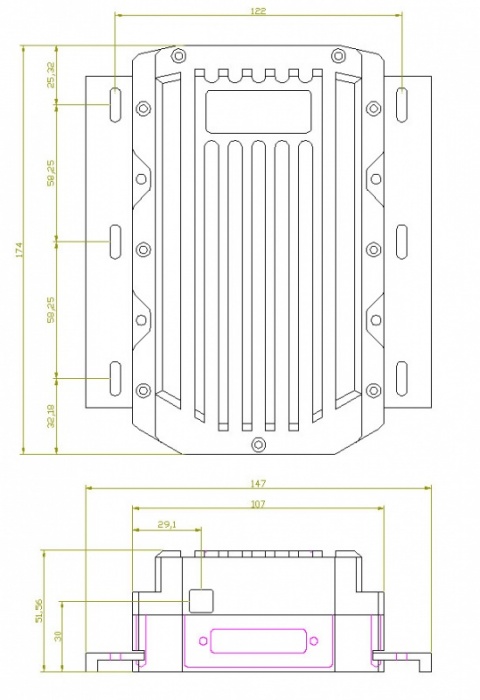

| Module dimensions (L, W, H, mm) | 174, 107, 51 |

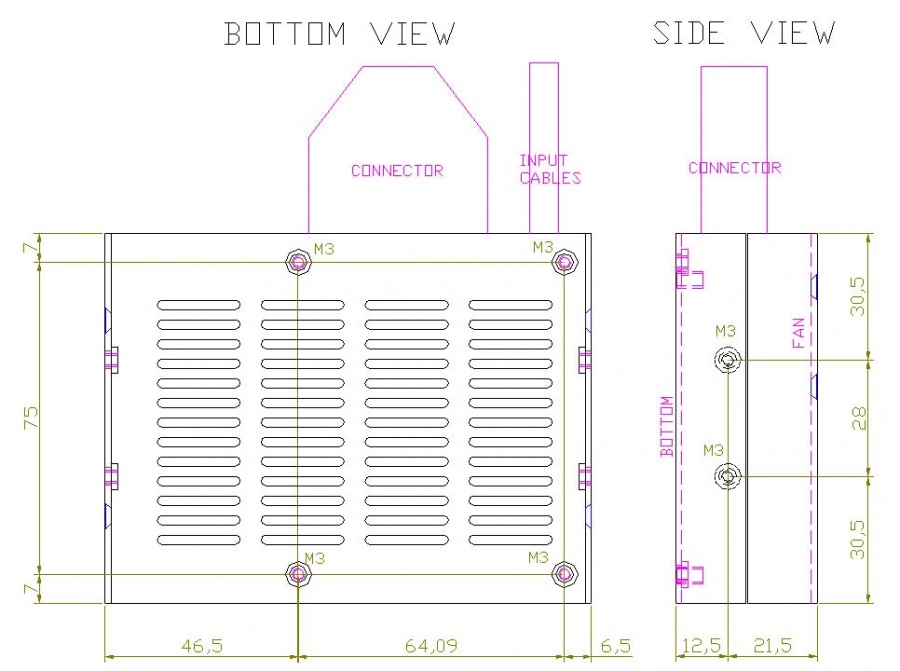

| Driver dimensions (L, W, H, mm) | 105, 75, 22 |
|
|
|
|
