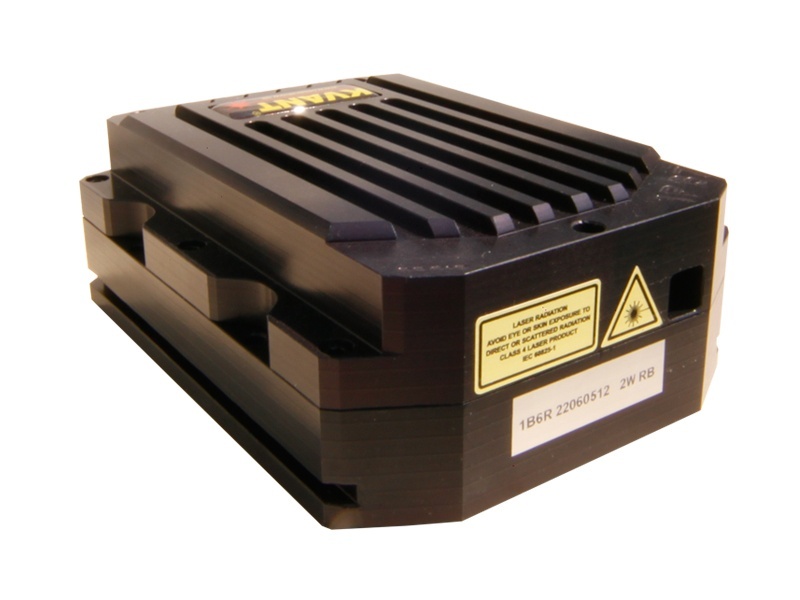

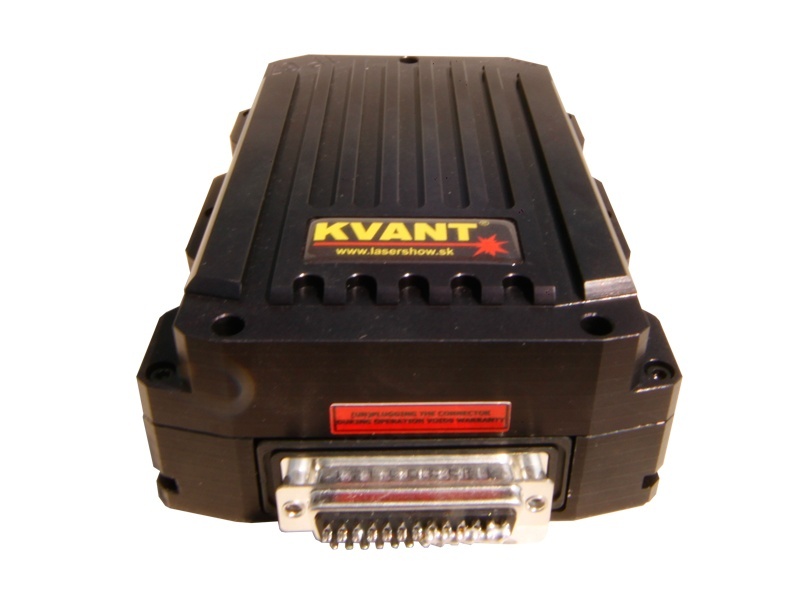

2.5W (1W/637nm + 1.5W/445nm) DUAL laser module KVANT


2.5W (1W/637nm + 1.5W/445nm) DUAL laser module KVANT

High-quality laser module emitting bright RED and deep BLUE coloured beams.

Specification:
Guaranteed optical output 2.5W
Centre wavelength (nm) 637 & 445
Centre wavelength tolerance (± nm) 5
Beam size (FWHM, hor. x vert., mm) 3.5x4.5
Beam divergence (half angle, hor. x vert., mrad) 0.8
Linear polarization Y
Modulation frequency 100kHz
Peak Power consumption TEC circuit 24V/3A
Peak Power consumption LD circuit 24V/2A
Input Voltage (V) 24

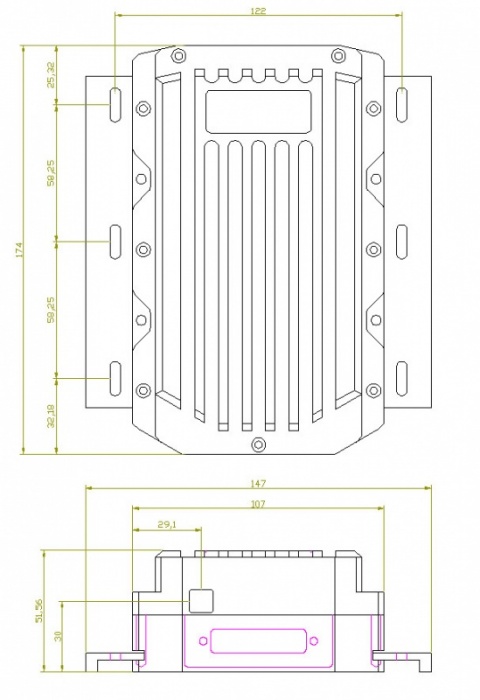

Module dimensions (L, W, H, mm) 174, 107, 51

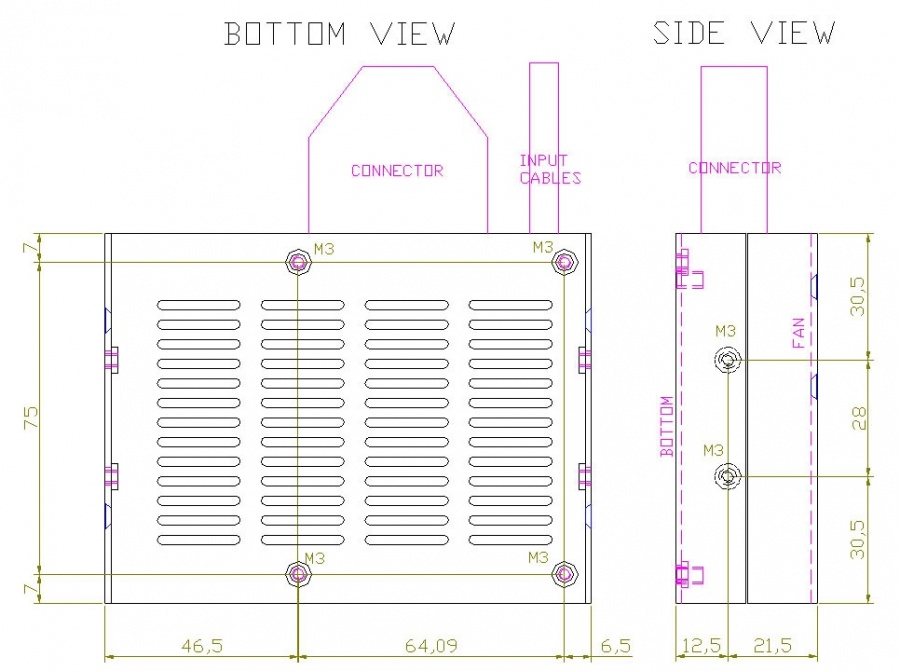

Driver dimensions (L, W, H, mm) 117, 89, 34
