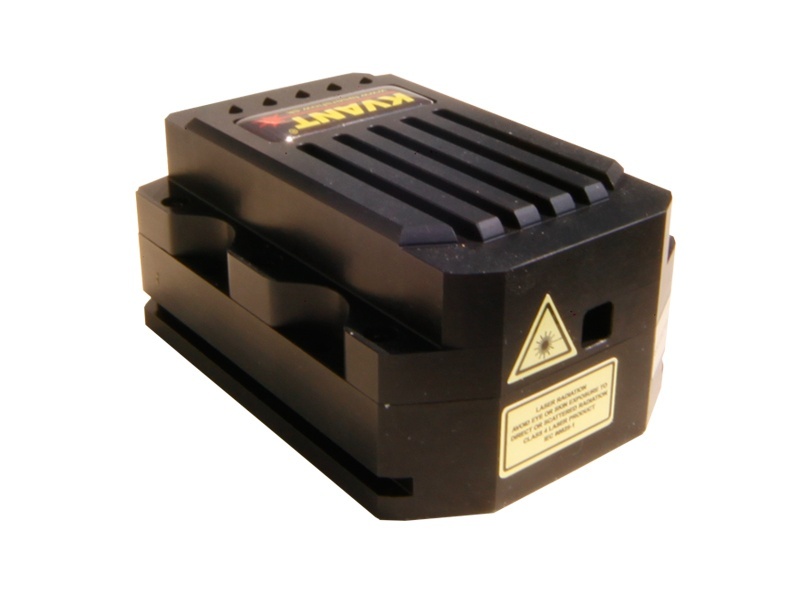

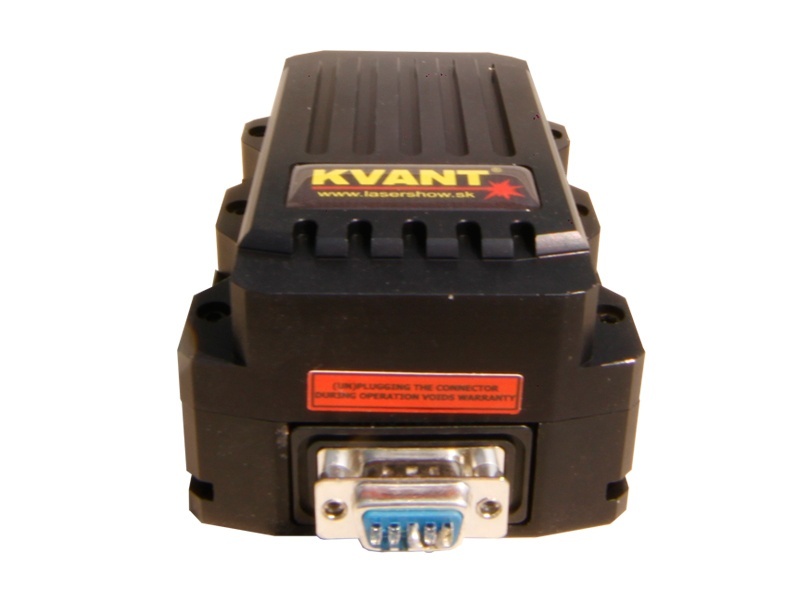

1.7W (680mW/637nm + 1W/445nm) DUAL laser module KVANT


1.7W (680mW/637nm + 1W/445nm) DUAL laser module KVANT

High-quality laser module emitting bright RED and deep BLUE coloured beams.

Specification:
Guaranteed optical output 1.7W
Centre wavelength (nm) 637 & 445
Centre wavelength tolerance (± nm) 5
Beam size (FWHM, hor. x vert., mm) 3x4.5
Beam divergence (half angle, hor. x vert., mrad) 0.9x0.8
Linear polarization Y
Modulation frequency 100kHz
Peak Power consumption TEC circuit 24V/1.5A
Peak Power consumption LD circuit 24V/1.5A
Input Voltage (V) 24

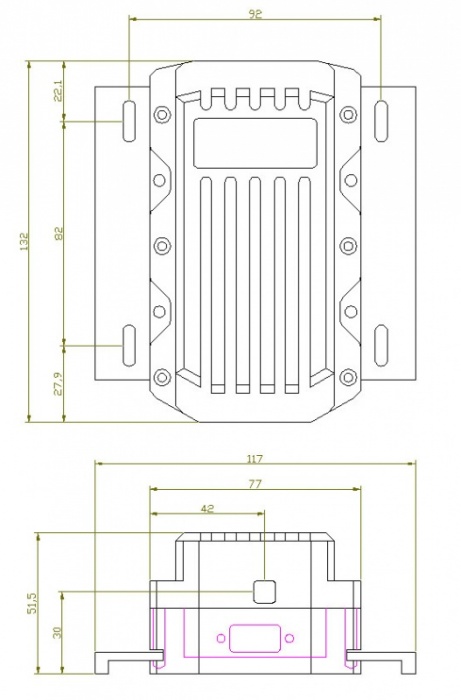

Module dimensions (L, W, H, mm) 132, 77, 51

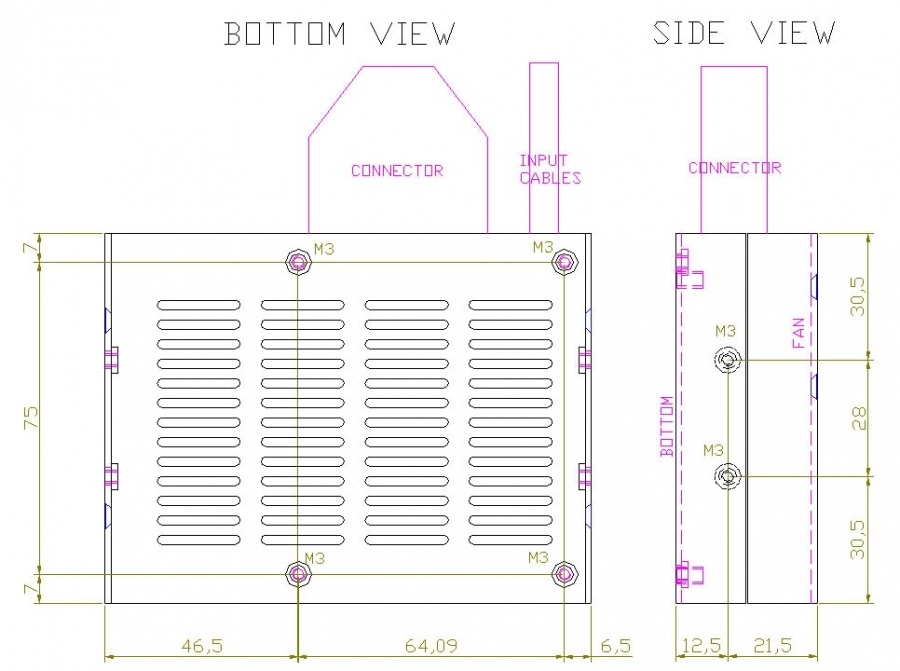

Driver dimensions (L, W, H, mm) 105, 75, 22
